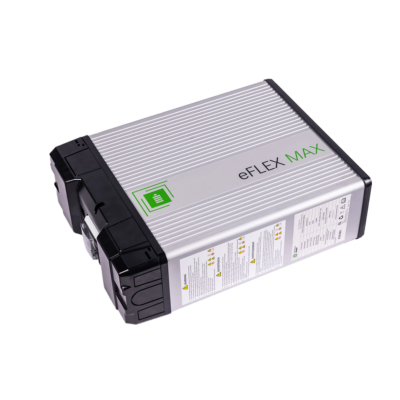

Fortress Power eFlex MAX 5.4kWh 48V LiFePO4 Battery
$3,964.00
or $182.85/mo for 24 mo at 9.96% APR with

The Fortress Power eFlex MAX is a wall-mount 51.2V LiFePO4 battery delivering 105Ah and 5.374kWh of usable storage with 100% depth of discharge. It offers 98% round-trip efficiency and an 8000-cycle life at 80% DoD, scaling up to 16 modules in parallel for 86.4kWh of capacity.
Shipping
2 in stock
Ships in 1–3 days
Delivers in 2–5 business days
Pickup
2 in Dartmouth
Ready Wed, Nov 18
Dartmouth, NS
We’ll email you once. No other mail.
Mon – Fri: 8:30am – 4:30pm MT
Need a wiring diagram? Get one free with your order →
The Fortress Power eFlex MAX is a 51.2V LiFePO4 energy storage module built around Tier 1 automotive prismatic cells, delivering 105Ah and 5.374kWh of usable capacity at 100% depth of discharge. Designed for residential and light commercial backup and self-consumption, it features a wall-mount anodized aluminum enclosure, an integrated 125A breaker, and CAN and Modbus communication. It supports up to 16 modules in parallel for 86.4kWh total.
Key Features:
- 105Ah / 5.374kWh usable at 100% DoD
- Nominal 51.2V LiFePO4 chemistry
- Tier 1 automotive prismatic cells
- 98% round-trip efficiency
- 8000 cycles @ 80% DoD
- Max charge / discharge current 100A each
- Peak 100A (5kW 60 min), surge 125A (6.6kW 5s)
- Up to 16 modules parallel (86.4 kWh)
- IP65 wall mount, 108 lbs, integrated 125A breaker
- UN38.3 and UL 1973, 10-year warranty
Ideal for grid-tied, backup, and off-grid systems needing scalable 48V storage, the eFlex MAX suits homeowners and installers alike. With CAN and Modbus communication and a wide -20°C to 55°C discharge range, it integrates readily with compatible inverters and expands to 86.4kWh across 16 modules.
| Nominal energy | 5.374 kWh |
|---|---|
| Cell chemistry | Tier 1 Automotive Prismatic - LiFeP04 |
| Nominal voltage | 51.2 V |
| Capacity | 105 Ah |
| Max continuous power | 5 KW 60 Min |
| Max continuous discharge current | 100 A |
| Round-trip efficiency | >98 % |
| Cycle life | 8,000 (@ 80% DoD) cycles |
| Depth of discharge | Up to 100 % |
| Operating temperature range | -20 ~ 55 (discharge); 0 ~ 45 (charge) °C |
| Enclosure rating | IP65 |
| Dimensions (L×W×H) | 446 x 184 x 616 mm (17.6 × 7.2 × 24.3 in) |
| Weight | 49 kg (108 lb) |
| Product warranty | 10 yr |
Documents
Datasheet, installation manual and warranty for the Fortress Power eFlex Max, straight from the manufacturer.
Download all · 8.9 MBNeed a certificate or drawing? Ask usAll manuals & downloads
