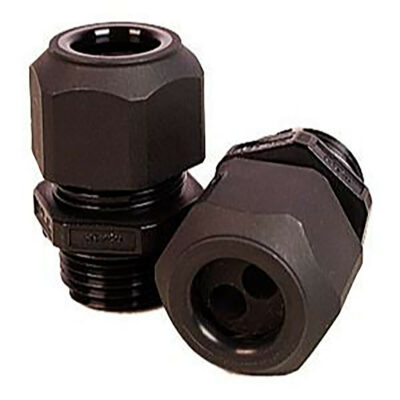

MidNite Solar Strain Relief for 2 x 6mm Wires
The MidNite MNSR-1000 Solar Strain Relief is an IP68 cordgrip fitting for two 6 mm USE-2 conductors, rated for operating temperatures from -40°F to 239°F. Its integral sealing ring delivers a liquid-tight seal with CSA 93876 and UL E51579 certification, backed by a 5-year warranty.
$9.00
Available to ship 421 ready to ship
Ships in 1–3 business days.
Delivers in 2–5 business days
Available for pickup
Brought in to Red Deer, AB when you order.
Pickup as early as Mon, Oct 19
— we’ll tell you about drops and promotions.
The MidNite Solar Strain Relief (MNSR-1000) is a cordgrip cable fitting designed to secure and seal two 6 mm USE-2 conductors entering an enclosure. Built for demanding solar installations, it carries an IP68 enclosure rating with an integral sealing ring and liquid-tight seal. Rated for operating temperatures from -40°F to 239°F, it is CSA 93876 and UL E51579 certified and suits Canadian outdoor climates.
Key Features:
- Cordgrip strain relief for 2 conductors
- Fits 6 mm USE-2 cable
- IP68 enclosure rating
- Integral sealing ring, liquid-tight seal
- Operating temp -40°F to 239°F
- Dynamic range -4°F to 212°F
- Flammability rating 94-V2
- CSA 93876, UL E51579 certified
- Black, 1.5″ x 1″ x 1″
- 5-year warranty
Ideal for sealing dual 6 mm PV wire entries into combiner boxes, disconnects, and outdoor enclosures. Its rugged IP68 construction and wide temperature range suit rooftop and ground-mount solar systems that demand a reliable, weatherproof cable entry point. Order the MNSR-1000 (also listed as MNSR1000) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
