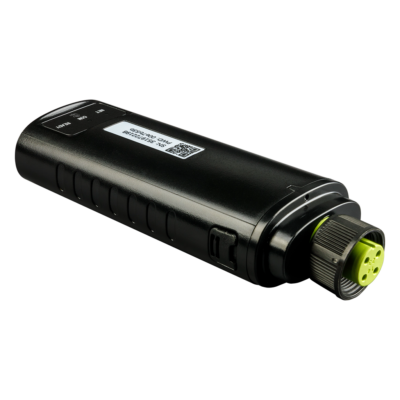

Pytes V5 WiFi Stick Monitoring Dongle
Pytes Energy Inc
SKU: 162002100019

Pytes V5 WiFi Stick Monitoring Dongle

$58.00

The Pytes 162002100019 V5 WiFi Stick is a monitoring dongle supporting WiFi 802.11b/g/n, BLE5.0, and RS485 communication with a built-in PCB antenna. It draws just 1.5 W at 5 VDC to 12 VDC and streams data to the Solarman platform for remote system tracking and configuration.

Shipping 207 in stock
Ships in 1–3 days
Delivers in 2–5 business days
Pickup
Ready Thu, Nov 12 in Red Deer
We bring it in when you order
Live stock
Count in the building
1–3 days
to ship, 2–5 to deliver
Dealer pricing
Questions about this product? A real person picks up.
or
Mon – Fri: 8:30am – 4:30pm MT

The Pytes 162002100019 V5 WiFi Stick is a monitoring dongle that connects compatible battery and inverter systems to the Solarman data platform for remote tracking and configuration. It supports WiFi 802.11b/g/n, BLE5.0, and RS485 communication through a built-in PCB antenna, draws only 1.5 W, and stores data in 8 MB of flash. A female aviation connector and multiple status indicators make installation and diagnostics straightforward.

Key Features:

  • WiFi dongle for Solarman monitoring platform
  • Communication: BLE5.0, RS485, WiFi 802.11b/g/n
  • Voltage rating 5 VDC to 12 VDC
  • Operating power 1.5 W, 8 MB flash storage
  • Built-in PCB antenna, female aviation connector
  • WiFi frequency 2.412 GHz to 2.472 GHz
  • Bluetooth 2.402 GHz to 2.480 GHz, MAX 15 dBm
  • Communication rate 1200 to 115200 bps, default 9600
  • Data interval 1-15 minutes, default 5 minutes
  • Operating temperature -22°F to 158°F

Ideal for owners and installers who need remote visibility of Pytes V5 energy storage systems. Configure it via AT+ commands, local web page, or remote server, and monitor performance through the Solarman platform in Canadian residential and light commercial installations. Order the 162002100019 from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
