S-5! S Mini Clamp, a compact and durable clamp designed for securely attaching solar panels and other components to standing seam metal roofs, ensuring stability and ease of installation.
Please log in to save items for later.

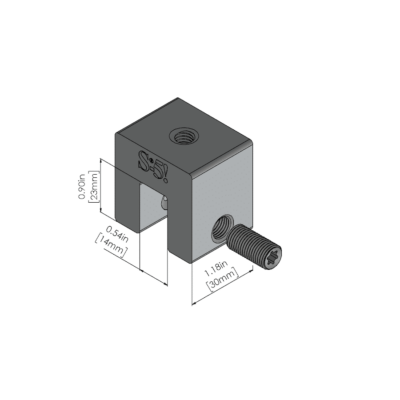

S-5-S™ Mini Clamp

Brand: S-5!
SKU: S-5-S Mini

$9.50

Available Now
S-5-S™ Mini Clamp
Availability by Warehouse
VictoriaN/A
N/A
VancouverAvailable Now
Available Now
EdmontonN/A
N/A
CalgaryAvailable Now
Available Now
BarrieN/A
N/A
HalifaxN/A
N/A
DartmouthAvailable Now
Available Now
StratfordN/A
N/A
Stock Status Disclaimer: Please note that stock status is based on partner warehouse availability and may be affected by changing inventory levels. For the most accurate stock information, please contact us directly.

The S Mini clamp is a more economical solution for lighter duty attachments where Herculean holding strength is not required.

All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

Fits Metal Roof Seam Type: 1" Single Fold, 1" Snap Seam, 1" Nail Strip, 1" Batten Cap, 1.25" Snap Seam, 1.5" Single Fold, 1.5" Snap Seam, 2" Double Fold, 2" Trap Single Fold, 1.75" Snap Lock, RibRoof
Downloads

Product Specifications:

  • Use on vertical snap-together profiles
  • Use on single-folded with horizontal projection (horizontal seams) under ≤ 0.54” (13 mm)
  • Utility mounting and other light and medium-duty applications
  • Smaller than the standard S-5-S
  • One T-30 Torx round-point setscrew (Torx bit tip provided)
  • No M8 bolt included
