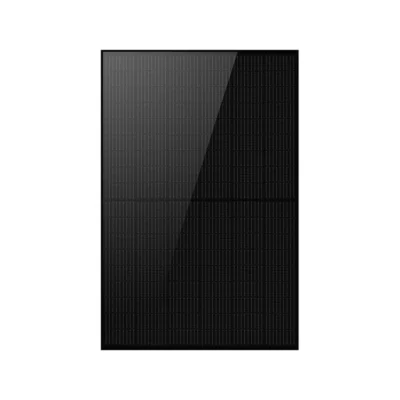

LONGi – 410W Monofacial Solar Panel (LR5-54HPB-410M)

Brand: Longi Solar
SKU: LR5-54HPB-410M
Panel Wattage: 410 Watts
Number of Cells: 108 Cell (Half-Cut 54)
Cell Type: Monofacial Solar Panels
Backsheet Color: Black
Frame Color: Black
Frame Size: 30mm
Voltage (Vmp): 31.42 Volts
Voltage (Voc): 37.4 Volts
Current (Imp): 13.05 Amps
Current (Isc): 13.84 Amps
Max Series Fuse Rating: 25 Amp
Panel Weight: 46 LB
Panel Dimensions: 67.80” x 44.65” x 1.18” Inches
Pallet Qty: 36 Per Pallet
Container Qty: 792 Per Container

$186.00

$0.45/W

Pallet Discount: Order 36 panels for $156.24 each (Auto-applied at checkout)
Available Now
LONGi – 410W Monofacial Solar Panel (LR5-54HPB-410M)
Availability by Warehouse
VictoriaN/A
N/A
VancouverN/A
N/A
EdmontonN/A
N/A
CalgaryAvailable Now
Available Now
BarrieN/A
N/A
HalifaxN/A
N/A
DartmouthAvailable Now
Available Now
StratfordN/A
N/A
Stock Status Notice: Inventory levels are dynamic and based on partner warehouse availability. Stock status is subject to change at any time without prior notice. For the most up-to-date availability, please contact us directly.
Less than skid quantity to be sold with $150 minimum handling charge.

Canada’s Largest Inventory

BC · AB · ON · NS

Price Match Guarantee

Proudly 100% Canadian

LONGi – 410W Monofacial Solar Panel (LR5-54HPB-410M)

Product Overview

Product Features

  • 410W
  • 104cell
  • Hi-MO 5m
  • Black frame
  • Black backsheet
  • 35mm frame
  • 1200mm cables

Half-Cell Modules
The power of half-cell module increases, and the hot spot temperature reduces because of lower working current.

Electrically Compatible
Operating current lower than 11A;
Good for distributed generation applications; Matches with various inverters and optimizers; Avoids wiring loss.

Multiple Size Configurations
Standardized width, choice of three different lengths, full utilization of limited roof area, realizing the maximum installed capacity

Gallium-doped Technology
Gallium-doped technology overcomes LID degradation and guarantees the long-term power generation of the module.

Power Warranty
1st year degradation ≤2%, linear degradation ≤0.55%/year

Installation on Any Roof
Flexible installation, including pitched roof, flat and angular roof and flat roof with herringbone detail

Multi-busbar Design
Our nine-busbar design further improves current collection capabilities.

Detailed Specifications

Panel Wattage: 410 Watts
Number of Cells: 108 Cell (Half-Cut 54)
Cell Type: Monofacial Solar Panels
Backsheet Color: Black
Frame Color: Black
Frame Size: 30mm
Voltage (Vmp): 31.42 Volts
Voltage (Voc): 37.4 Volts
Current (Imp): 13.05 Amps
Current (Isc): 13.84 Amps
Max Series Fuse Rating: 25 Amp
Panel Weight: 46 LB
Panel Dimensions: 67.80” x 44.65” x 1.18” Inches
Pallet Qty: 36 Per Pallet
Container Qty: 792 Per Container
