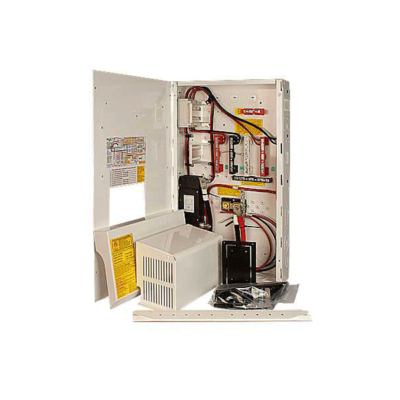

Midnite Solar – E-Panel Steel Enclosure – 250A Breaker & Wire for MS4024PAE

Features & Attributes

Dimensions (LxWxH): 29 × 19 × 11 inches
Weight: 42 lbs
Small size compared to existing disconnect and over current solution
Pre-wired to save time, money and complexity.
White powder coated aluminum or standard gray powder coated steel
Easily expands to accommodate additional inverters
Six slots for din rail breakers, PV, Wind, Hydro, AC distribution
Pre-wired 50 amp 240VAC rated Inverter AC bypass switch
Pre-wired 50 amp 240VAC rated AC Input disconnect
Bus bars for Battery Plus, Battery Minus and ground
Mounting hardware for Inverter and charge controller
Mounting brackets for hanging E-Panel on wall
Heavy duty 175 amp AC distribution block
