S-5! – CanDuit™ Pipe Clamps

Brand: S-5!

Special Order

Are you propping up pipes and conduit on your metal roof with wood blocks, cinderblocks, rubber pads, Unistrut or whatever else you can find? These haphazard and messy assemblies can trap moisture, cause corrosion and leech chemicals onto the roof, voiding its warranty.

With the CanDuit securement clamp, you can contain piping and conduit in an easy, organized manner with no scratching, corrosion or other damage to your roof.

Product Specifications:

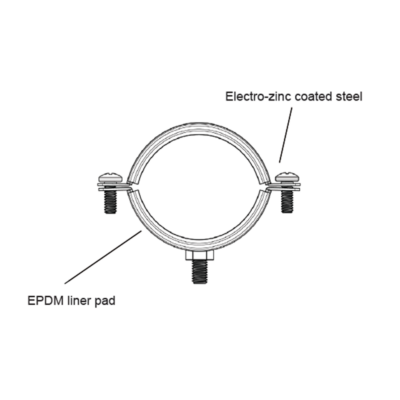

Strap is corrosion-resistant, electro-zinc coated steel; 8-micron minimum thickness.
EPDM liner pad prevents abrasion.
Durable in all environments, CanDuit comes with a 10-year warranty against manufactured defects.
Available in 14 sizes with a pipe outer diameter from .79″ (20 mm) to 4.6” (117 mm).
Adjustability within each clamp increases with clamp size to secure most conduit and pipes.
CanDuit’s M8 threaded shaft mounts directly to any S-5! clamp or bracket.
Clamps mount round shapes parallel, transverse or askew to roof seams.
Use with GRipperFix to mount multiple pipes/conduits in groupings or to support a single pipe between two seams. An additional M8 flange nut is required.

Securement Clamps Available in 14 Diameter Dimensions*

*Match outer diameter of the pipe/conduit to the adjustability range.

	Adjustability Range
#1	.79 in - .94 in (20 mm-24 mm)
#2	.98 in - 1.18 in (25 mm-30 mm)
#3	1.26 in - 1.46 in (32 mm-37 mm)
#4	1.54 in - 1.81 in (40 mm-46 mm)
#5	1.89 in - 2.10 in (48 mm-53 mm)
#6	2.10 in - 2.32 in (54 mm-59 mm)
#7	2.3 in - 2.6 in (58 mm-66 mm)
#8	2.64 in - 3.00 in (67 mm-76 mm)
#9	2.9 in - 3.15 in (74 mm-80 mm)
#10	3.27 in - 3.67 in (83 mm-93 mm)
#11	3.4 in - 3.7 in (86 mm-94 mm)
#12	3.7 in - 4.10 in (94 mm-104 mm)
#13	4.00 in - 4.37 in (102 mm-111 mm)
#14	4.25 in - 4.6 in (108 mm-117 mm)
