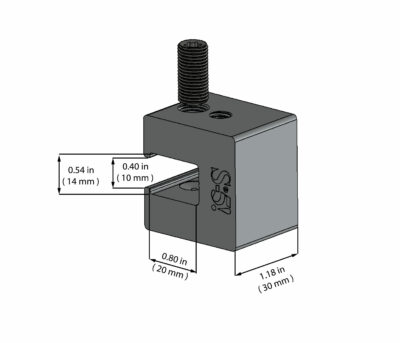

S-5-H90™ Mini Clamp

Name: S-5-H90™ Mini Clamp - Circuit Solar™
SKU: S-5-H90 Mini

Brand: S-5!

SKU: S-5-H90 Mini

Special Order

The H90 Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

Fits Metal Roof Seam Type: 2" Single Fold, 3" Trap Single Fold

Downloads

Designed for standing seam panels with horizontal, single-folded seams
Secure and cost-effective solution for horizontal seam dimensions ≥ 0.65” (16.5 mm)
Fits all standing seams the S-5-U fits horizontally, and fits fully seamed profiles the S-5-H fits vertically – but is more cost-effective than either.
One T-30 Torx round-point setscrew – side installation – (Torx bit tip provided)
No M8 bolt included
