S-5-U™ Mini Clamp

Brand: S-5!
SKU: S-5-U Mini

The U Mini clamp is a more economical solution for lighter-duty roofing attachments where Herculean holding strength is not required.

All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

Product Overview
Detailed Specifications
Downloads & Support

$12.15

S-5-U™ Mini Clamp
Availability by Warehouse
VictoriaN/A
N/A
VancouverN/A
N/A
EdmontonAvailable July 18, 2025
Available July 18, 2025
Calgary17 In Stock
17 In Stock
BarrieN/A
N/A
HalifaxN/A
N/A
DartmouthN/A
N/A
StratfordN/A
N/A
Stock Status Notice: Inventory levels are dynamic and based on partner warehouse availability. Stock status is subject to change at any time without prior notice. For the most up-to-date availability, please contact us directly.
In Stock

Limited Lifetime Warranty

Made in the USA

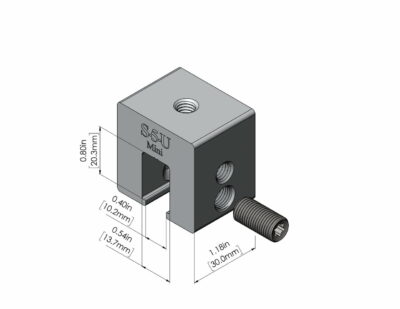

S-5! U Mini Clamp, a compact and durable clamp designed for securely attaching solar panels and other components to standing seam metal roofs, ensuring stability and ease of installation.
S-5!

Canada’s Largest Inventory

BC · AB · ON · NS

Price Match Guarantee

Proudly 100% Canadian

S-5-U™ Mini Clamp
Overview
Specs
Downloads

Product Specifications:

  • Accommodates most standing seam profiles in North and South America, including structural and architectural profiles
  • Use on vertically-oriented seams, OR
  • Rotate clamp 90° and use on most horizontal seam profiles w/ horizontal projection ≥ 0.65” (16.5 mm)
  • Use for light and medium-duty applications, such as utility mounting and solar PV
  • Smaller than the standard S-5-U
  • One T-30 Torx round-point setscrew (Torx bit tip provided)
  • No M8 bolt included
Fits Metal Roof Manufacture: A&SAEP SpanAltech FabricationAmerican Buildings CompanyArchitectural Metal ProductsArchitectural Metal SpecialtiesASC Building ProductsAssociated Building SystemsBax-Steel BuildingsBC Steel BuildingsBehlen Building SystemsBehlen IndustriesBerridgeBothwell-AccurateBridger Steel IncBryer CompanyButlerCecoCentral States ManufacturingCentral Texas Metal Roofing SupplyChief IndustriesClassic Roofing SystemsCoated Metals Group (CMG)Corle Building SystemsCustom Bilt MetalsDean Steel BuildingsDimensional MetalsDrexel MetalsEnglertFab TechFabralGalvakHPM Building SupplyImpolIncInc.KBSKingspan USAKirby Building SystemsKnudson Building SystemsLaura Star-RoofMBCIMcElroy MetalMerchant & EvansMescoMetal Panel SystemsMetal SalesMetal-Fab ManufacturingMetallion IndustriesMetl-SpanMorinNCI/Midwest MetallicNew Tech MachineryNu Ray MetalsNU-TECH MachineNucor Building SystemsOC MetalsPetersen Aluminum CorpPremium Panels IncRigid Global BuildingsRobertson Building SystemsS.A. de C.V.Schulte Building SystemsSheet Metal Supply LTDSheffield MetalsSouthwestern Sheet Metal WorksSteel SpanSteel TileSteelway Building SystemsTaylor MetalsTremcoUnion Corrugating CompanyUnited Structures of AmericaVarco PrudenVicwestWestern State Metal RoofingWhirlwind Building Systems
Fits Metal Roof Profile: 1" Mini Batten, 2 Custom Lock (Single Fold), 2” Mechanical Lock Single Fold, 216, AMS175 1-3/4" Snap-Lock, AMS200 2" Mechanical Lock, Architectural, Artlock, BattenLok HS, Bax-Lock, BCL 24-MS, BCL 24-SD, CB 2000 (Single Fold) NT, Central Loc, Central Seam Plus, CFR, CFR Vise Lock 180, CFR Vise-Lock 360, Clip Loc, Clip-Lock, CR-S 400 (Double Fold), CR-S 400 (Single Fold), CRP, CXP, Design Span hp, DL-15, DMC 150SL, DMC 175S Snap Lock 1-3/4", DMC 200S 2", DMC 200S 2" Double Fold, DMC 210S (Armco Style DBF), DMC 210S (Armco Style), Double-Lok, DuraSeal Seam, DuraSeal Snap, Galvalok I, Galvalok II, Grobgekoernt (Snap), Guardian I, Guardian II, HI-Tech Series Quad-Lok, HI-Tech Series Trip-Lok, HWR, IP Seam 3, KA-2000, KingZip 1020, Kirbylok 2000, Kirbylok 2000 MS, Kirbylok 2000-MS, KR 24 2" Double Lock, KR 24 2" Single Lock, KR-20, Loc Seam, Loc Seam 360, LokSeam, Magna Loc 180 (DBF), Magna Loc 90 (SF), Master Lok-FS ML-FS, Master-Lok 90 (ML90), Maxima 1.5", Maxima 2 (Single Fold), Maxima 2" ADV, MetFab III Panel (DBF), MetFab III Panel (SF), MetFab Snap-On 675, MI 210 Double (180deg) Seaming, MI 210 Single (90deg) Seaming, ML200 (Single Fold), MLF-2 (SF), MP200 (DF), MP200 (SF), MR24, MS-150 (Double Fold), MS-200 (Double Fold), MS-200 (Single Fold), MS2 (Double Fold), MS2 (Single Fold), MSC Panel, MVF/MVP, OCM 175 SL, PL200 (Single Fold), PL210 (Double Fold), PL210 (Single Fold), Platinum Series Quad-Lok, Platinum Series Trip-Lok, Pro Seam Panel, PS450, PS675, Roof-Lok, Roof-Lok Plus, RTL-24 Quad Loc, RTL-24 Triple Loc, Seam-Loc, Seam-Lok, Series 1000, Series 1500, Series 2000, Series 2400 (DBF), Series 2400 (SF), Series 2500 (DBF), Series 2500 (SF), ShurLoc 175, Skyline Roofing, SL 1750 NT, SL-20, Slim-Lock, SLR, SLR 180 deg, SMI 1.5" SnapLock 450 SL, SMI 1.75" SnapLock, SMI 2.0" Mechanical Seam (ARMCO) (Double Fold), SMI 2.0" Mechanical Seam (ARMCO) (Single Fold), SMI 2.0" Mechanical Seam (Single Fold), Snap-Loc, Snap-Seal, SnapLoc, Span Seam, Span-Lok hp, Spanlock, SS 200 (Double Fold), SS 200 (Single Fold), SS 210A (Armco Style) 2, SS 210A (Double Fold), SS 210A (Single Fold), SS 450 SL, SS 675 Snap Lock 1-3/4", SSR, SSR24, Stand N Seam, Standing Seam 1.5, Standing Seam 360, Standing Seam II, Starshield-SSR, STC Panel, Structure-Lok, Super Seam - II, Super Seam Plus, SuperLok, Supreme-Lok, Sure Lock II 1-3/4, Sure-Lok, TBC-Superseam (Double Fold), TBC-Superseam (Single Fold), Tech-Seam, Thin Lock, Tite-Loc, Tite-Loc Plus, Tradition 100, TremLock LSP, TremLock VP, TS-324 TripleLok, UlraLoc, Ultra Dek, Ultra Seam US 200S, Ultra Span Panel (SF), Ultra-Dek, Ultraseam US 200S 2" Mechanical Lock 90 degree, Ultraseam US175LS Snap-Lock, UniLoc, Versa-Span, VersaClip Standing Seam, VersaSpan 200 Standing Seam DF, VersaSpan 200 Standing Seam SF, VR16-II Vise-Lock, VR16-II Vise-Lock 360, Weather Roof II, Western Lock, Zee-Lock (Double Fold), Zip-Lok 2 (Double Fold), Zip-Lok 2 (Single Fold), ZL-24 Triple-Lock
Fits Metal Roof Seam Type: 1" Nail Strip, 1" Batten Cap, 2-11/16" Trap Double Fold, 1.5" Single Fold, 1.5" Snap Seam, 1.5" Double Fold (Short Fold), 1.5" Double Fold (Tall Fold), 2" Double Fold, 2" Single Fold, 2.5" Double Fold, 1.75" Snap Lock, 3" Trap Double Fold (Short Fold), 3" Trap Double Fold (Tall Fold), 3" Trap Single Fold, 3" Trap Snap Seam
