S-5-V™ Mini Clamp

Brand: S-5!
SKU: S-5-V Mini

The S-5-V (“V” stands for vertical) is a cost-effective solution for most machine-folded seams in vertical orientation and within certain dimensions. It is non-penetrating and one of our most popular standing seam metal roof clamps.

Product Overview
Detailed Specifications
Downloads & Support

$14.78

In Stock

Limited Lifetime Warranty

Made in the USA

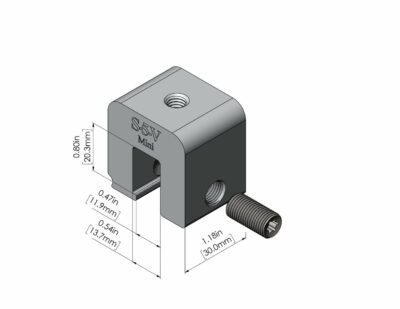

S-5! V Mini Clamp, a compact and durable clamp designed for securely attaching solar panels and other components to standing seam metal roofs, ensuring stability and ease of installation.
S-5!

Canada’s Largest Inventory

BC · AB · ON · NS

Price Match Guarantee

Proudly 100% Canadian

S-5-V™ Mini Clamp
Overview
Specs
Downloads
  • Accommodates the same vertically-oriented seams as the S-5-U Mini
  • Lower cost than the S-5-U Mini
  • Specifically designed for vertical, mechanically-folded seams
  • Use for light and medium-duty applications, such as solar PV and other utilities
  • Smaller than the standard S-5-V
  • One T-30 Torx round-point setscrew (Torx bit tip provided)
  • No M8 bolt included
Fits Metal Roof Manufacture: A&SAB Martin RoofingAEGIS Roofing CompanyAEP SpanAltech FabricationAmerican Buildings CompanyArchitectural Metal SpecialtiesBax-Steel BuildingsBC Steel BuildingsBehlen IndustriesBerridgeBigbee Steel BuildingsBothwell-AccurateBridger Steel IncBryer CompanyButlerCBC Steel BuildingsCecoCentral States ManufacturingCorle Building SystemsCustom Bilt MetalsDimensional MetalsDrexel MetalsEnglertEverlast MetalsFab TechFabralIncInc.KBSKirby Building SystemsKnudson Building SystemsLaura Star-RoofMBCIMcElroy MetalMerchant & EvansMescoMetal Panel SystemsMetal SalesMetal-Fab ManufacturingMetallion IndustriesMorinNCI/Midwest MetallicNew Tech MachineryNucor Building SystemsPanasonicPetersen Aluminum CorpPremium Panels IncRigid Global BuildingsRobertson Building SystemsSaudi K-SpanSheffield MetalsSteel TileSteelway Building SystemsTaylor MetalsTremcoUnion Corrugating CompanyUnited Structures of AmericaVarco Pruden
Fits Metal Roof Profile: 2" Mechanical Seam Double Fold, 2” Mechanical Lock Double Fold, 3” Trapezoidal, 50/406 AEGIS Architec Profile, 70/406 AEGIS Structural Profile, AB Seam 1.5, AMS175 1-3/4" Snap-Lock, Bax-Lock, BCL 24-MS, BigbeeLok-324 QuadLok, BigbeeVR-218 QuadLok, Central Loc, Central Seam Plus, CFR Vise-Lock 360, CXP, DL-15, DL-200, DMC 175S Snap Lock 1-3/4", DMC 200S 2" Double Fold, DMC 210S (Armco Style DBF), Double-Lok, Flat Sheet, Guardian II, HI-Tech Series Quad-Lok, HWR, Kirbylok 2000 MS, KR 24 2" Double Lock, Loc Seam 360, Master Lok-FS ML-FS, Master-Lok 90 (ML90), Maxima 1.5", Maxima 2" ADV, MetFab III Panel (DBF), MetFab Snap-On 675, MI 210 Double (180deg) Seaming, MP200 (DF), MR24, MS 24, MS-150 (Double Fold), MS-200 (Double Fold), PL210 (Double Fold), Platinum Series Quad-Lok, RTL-24 Quad Loc, Seam-Loc, Seam-Lok, Series 2400 (DBF), Series 2500 (DBF), SL 1750 NT, SL150, SLR 180 deg, SMI 2.0" Mechanical Seam (ARMCO) (Double Fold), Snap-Loc, Snap-Seal, Span Seam, Spanlock, SS 200 (Double Fold), SS 210A (Double Fold), SS 675 Snap Lock 1-3/4", SSR, SSR24, Stand N Seam, Standing Seam 1.5, Standing Seam 360, Starshield-SSR, Structure-Lok, SuperLok, TBC-Superseam (Double Fold), Tite-Loc Plus, TremLock LSP, Ultra Dek, Ultra-Dek, Ultraseam US175LS Snap-Lock, VersaClip Standing Seam, VersaSpan 200 Standing Seam DF, VR16-II Vise-Lock 360, Weather Roof II, Zee-Lock (Double Fold), Zip-Lok 2 (Double Fold)
Fits Metal Roof Seam Type: 2-11/16" Trap Double Fold, 1.5" Snap Seam, 1.5" Double Fold (Short Fold), 1.5" Double Fold (Tall Fold), 2" Double Fold, 2.5" Double Fold, 1.75" Snap Lock, 3" Trap Double Fold (Short Fold), 3" Trap Double Fold (Tall Fold), 3" Trap Snap Seam
