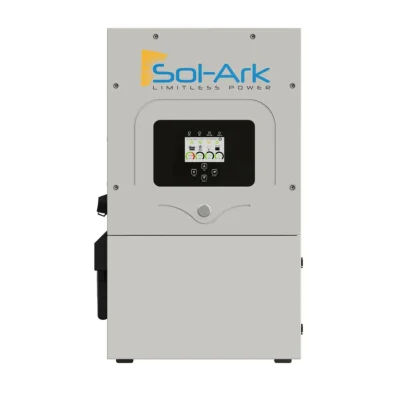

Sol-Ark 5K Hybrid All-In-One Inverter/Charger, a compact and versatile device designed for solar power systems, providing efficient energy conversion, reliable battery charging, and seamless integration for residential applications.
Please log in to save items for later.
Sol-ark

Sol-Ark – 5K Hybrid All-In-One Inverter/Charger

Brand: Sol-ark
SKU: SA-5K

$8,950.00

The Sol-Ark 5K Pre-Wired Hybrid Inverter System is an all-in-one system that includes an inverter, charger controller, and display with remote monitoring. The Sol-Ark is simple to install to a Grid-tied, Off-Grid, or Battery Backup solar system, while being able to manage power to and from Solar, Battery, Grid, Loads, and Generator.

Sol-Ark 5K Hybrid All-In-One Inverter/Charger, a compact and versatile device designed for solar power systems, providing efficient energy conversion, reliable battery charging, and seamless integration for residential applications.

SA-5K Features:

  • Simple to install with touchscreen interface
  • Grid Tied Mode: Sell your power to reduce electric bill
  • Meter Zero Mode: Zero your electric bill without a smart meter
  • Time of Use: Use solar and batteries to minimize grid power usage
  • Programmable Smart Load Mode
  • DC and AC Coupling
  • Works with a wide range of battery chemistries – Lead acid to Lithium

SA-5K Specifications:

  • AC Voltage: 120/240V split phase
  • AC Frequency: 60/50 Hz
  • Max PV power delivered to Battery & AC outputs: 6500 Watts
  • Max AC Coupled input(Micro/String Inverters): 9,600 Watt/9,600 Watt
  • MPPT Voltage Range: 150-425V
  • Max DC Current: 10 Amp (per mppt)
  • Inverter Efficiency: 96.0%
  • Listings & Certifications: UL1741-2010/2018, IEEE1547a-2003/2014, FCC 15 class B
  • Weight: 78. lbs
  • Dimensions (H x W x D): 30.0″ x 18.30″ x 10.00″
Panel Wattage: 5000 Watts
Input Voltage: 480 Volts
Input Voltage (Vdc): 480 Volts
Output Voltage (Vac): 120 Volts
Inverter Phase: Single Phase
Inverter Type: Hybrid Inverters, Off-Grid Inverters
Inverter Efficiency: 96%
