Our system offers simplified solutions for composition shingle and tile roofs. Our products provide installers with maximum flexibility and proven reliability of solar panels.
- Minimum number of components
- Patented design
- Fast and easy installation
- 100 cubic inches (Systems 7kW and smaller)
Specifications and Ratings
- Maximum Voltage: 1,000 Volts
- Maximum Current: 80 Amps
- Allowable Wire: 14 AWG – 6 AWG
- Spacing: Please maintain a spacing of at least ½” between uninsulated live parts and fittings for
- conduit, armored cable, and uninsulated live parts of opposite polarity.
- Enclosure Rating: Type 3R
- Roof Slope Range: 2.5 – 12:12
- Max Side Wall Fitting Size: 1”
- Max Floor Pass-Through Fitting Size: 1”
- Ambient Operating Conditions: (-35°C) – (+75°C)
- Compliance:

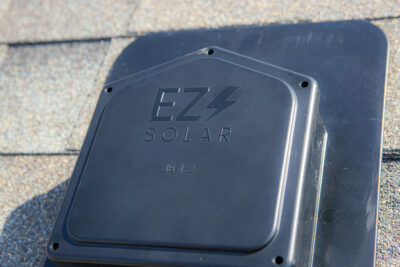

- JB-1.2: UL1741
- Approved wire connectors: must conform to UL1741
- System Marking: Interek Symbol and File #5019942
- Periodic Re-inspections: If re-inspections yield loose components, loose fasteners, or any corrosion between components, components that are found to be affected are to be replaced immediately.
