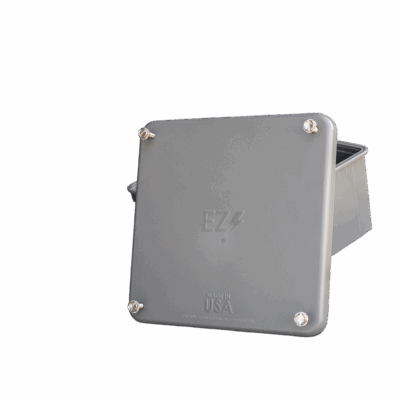

EZ Solar Mamba 4x4x2 Polycarbonate Junction Box
$23.00
The EZ Solar JB-M.442+ Mamba 4x4x2 is a UV-rated polycarbonate junction box rated for 1500 VDC and 80 A in solar PV combiner and disconnect applications. Its Type 3R enclosure withstands ambient conditions from -35°C to +75°C and accepts 14 AWG to 6 AWG wiring, backed by a 25-year warranty.
Shipping
124 in stock
Ships in 1–3 days
Delivers in 2–5 business days
Pickup
Ready Thu, Nov 12 in Red Deer
We bring it in when you order
We’ll email you once if the everyday price is lowered. No other mail.
Mon – Fri: 8:30am – 4:30pm MT

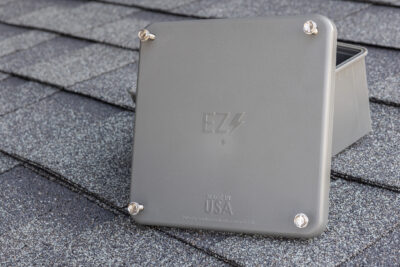

The EZ Solar Mamba 4x4x2 (JB-M.442+) is a polycarbonate junction box built for rooftop solar PV combiner and disconnect applications. Rated for 1500 VDC and 80 A, it suits installers needing a durable, UV-rated enclosure that performs across extreme temperatures. Its Type 3R rating and compact 5.1″ x 5.1″ x 2.3″ footprint make it ideal for weather-exposed roof mounting on slopes from 2 to 90 degrees.
Key Features:
- Voltage rating 1500 VDC, current rating 80 A
- UV-rated polycarbonate construction
- Type 3R enclosure rating
- Allowable wire 14 AWG to 6 AWG
- Operating temperature -35°C to +75°C
- Dimensions 5.1″ x 5.1″ x 2.3″, weight 6 lb
- Roof slope range 2 to 90 degrees
- Max side wall fitting size 3/4″
- Certified to CSA C22.2 No. 290 and UL 1741
- 25-year warranty
Ideal for rooftop residential and commercial solar arrays, this junction box supports combiner and disconnect wiring across a wide slope and temperature range. Made in the USA, it integrates with standard PV wiring from 14 AWG to 6 AWG and accepts 3/4″ side wall fittings for clean, code-compliant installations. Order the JB-M.442+ (also listed as JBM.442+) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
