S-5! CorruBracket™ 100T PV

Brand: S-5!
SKU: S-5 CorruBracket 100T PV

Specifically Designed for PV Mounting with the PVKIT®

With the CorruBracket 100T PV, the “100” designation indicates imperial dimensioning. See the  “500” for metric compatibility. The “T” indicates “top-fixed.”

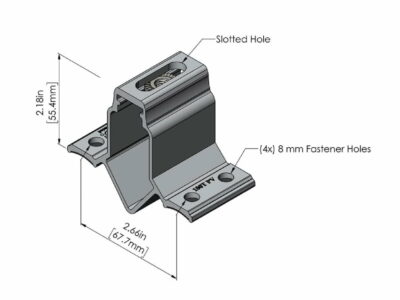

The 100T PV is designed for direct-attach™ solar mounting with the S-5-PVKIT. The 100T PV features a slotted hole for 1” of adjustability and an open channel for wire management.

Choose the 100T PV for mounting to 7/8″ and 3/4″ tall and 2.67” rib-pitch (crest-to-crest) corrugated profiles.

Attachment Versatility

The 100T PV fastens into the sheeting-only (self-piercing screws provided), allowing you to position the metal roof bracket anywhere along the roof ribs. You can also use the 100T PV for attachment of solar inverters and/or optimizers. The bracket’s “V” configuration helps prevent crushing of the ribs when PV modules experience down-force, such as snow loads.

Limited Lifetime Warranty
Made in the USA
S-5! CorruBracket™ 100T PV

Product Overview

Specifically Designed for PV Mounting with the PVKIT®

With the CorruBracket 100T PV, the “100” designation indicates imperial dimensioning. See the  “500” for metric compatibility. The “T” indicates “top-fixed.”

The 100T PV is designed for direct-attach™ solar mounting with the S-5-PVKIT. The 100T PV features a slotted hole for 1” of adjustability and an open channel for wire management.

Choose the 100T PV for mounting to 7/8″ and 3/4″ tall and 2.67” rib-pitch (crest-to-crest) corrugated profiles.

Attachment Versatility

The 100T PV fastens into the sheeting-only (self-piercing screws provided), allowing you to position the metal roof bracket anywhere along the roof ribs. You can also use the 100T PV for attachment of solar inverters and/or optimizers. The bracket’s “V” configuration helps prevent crushing of the ribs when PV modules experience down-force, such as snow loads.

CorruBracket 100T PV Product Specifications:

  • 7/8” and 3/4” (H) x 2.67” rib-pitch, U.S. corrugated profiles
  • Mounts directly into crest of corrugation, straddling valley
  • Four pre-punched holes in base
  • Open channel for wire containment/management
  • Fastens into sheeting-only with the provided stainless-capped piercing fasteners
  • Bracket allows module glass to sit 4+ inches above valley of corrugation
  • Slotted top hole offers more than 1” of adjustability
  • PVKIT® 2.0 compatible
  • Allows for attachment of solar inverters and/or optimizers
  • 4 self-piercing screws and 1 M8 nut included
