S-5! Z Mini Clamp, a compact and durable clamp designed for securely attaching solar panels and other components to standing seam metal roofs, ensuring stability and ease of installation.
Please log in to save items for later.
S-5!

S-5-Z Mini

Brand: S-5!
SKU: S-5-Z Mini

$13.96

Available Now
Stock Status Disclaimer

Stock statuses are updated on a monthly basis and may not reflect real-time availability. Some products may not display a stock status but are likely still in stock. For the most accurate and up-to-date information, or if a stock status is not shown, please contact us directly for availability.

Here’s a clear and concise bullet point description for the stock statuses:

  • Available Now: The product is in stock and ready for shipping.
  • More Expected: Currently low or out of stock, but additional inventory is on its way.
  • Special Order: The item is not regularly stocked and will be ordered specifically for you, subject to extended lead times.
  • Contact Us for Availability: The item’s stock status is uncertain; reach out to confirm availability before purchasing.

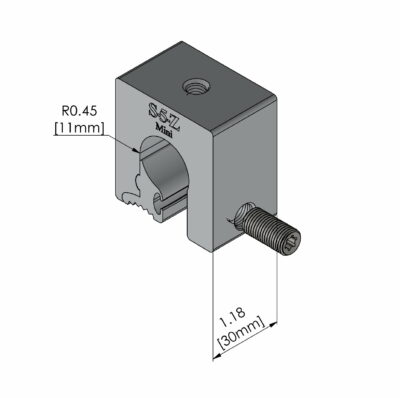

The Z Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

The Z Mini clamp is a bit shorter than the standard Z with one setscrew rather than two.

All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

Fits Metal Roof Seam Type: 1.5" Batten Cap, 1.5" Single Fold, 1.5" Snap Seam, 1.75" Bulb Seam (EU), 2.5" Bulb Seam, 3" Trap Double Fold (Tall Fold), Conceal Fix Narrow
Downloads
Datasheet
S-5! Z Mini Clamp, a compact and durable clamp designed for securely attaching solar panels and other components to standing seam metal roofs, ensuring stability and ease of installation.
  • Specially designed to fit Zip-Rib®, BEMO, Kalzip® and similar profiles with a round “bulb” seam configuration and seam diameters of ≤ 7/8” (22 mm)
  • Two-piece clamp design means you can easily install anywhere along
    the rib
  • Light and medium-duty applications, such as utility mounting
  • Smaller than the standard S-5-Z
  • One T-30 Torx round-point setscrew (Torx bit tip provided)
  • No M8 bolt included
Datasheet
