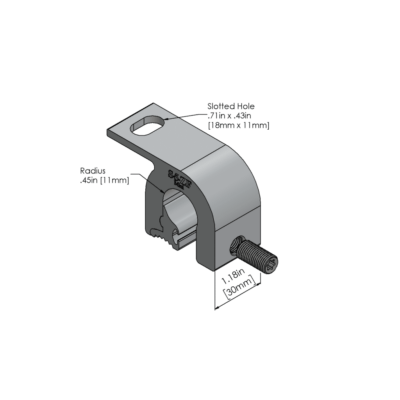

S-5-ZF™ Mini Clamp

Brand: S-5!
SKU: S-5-ZF

A nut and bolt are often the required connection for certain utilities or bottom-bolted PV rails (Schletter, K-2, Everest) to a standing seam clamp. Choose the S-5-ZF Mini (“F” for “Flange”) for an economical, non-penetrating standing seam metal roof (SSMR) clamp for most “bulb” seam configurations such as ZipRib, BEMO and KalZip.

The slotted hole in the flange allows minor adjustment, making the ZF Mini ideal for walkways, module-level power electronics and a myriad of other utility mountings.

Stainless steel lock-nuts and several bolt sizes are sold separately.

The ZF Mini has a single setscrew for medium or light-duty applications, such as solar or satellite dish mounting.

Limited Lifetime Warranty
Made in the USA
S-5-ZF™ Mini Clamp

Product Overview

A nut and bolt are often the required connection for certain utilities or bottom-bolted PV rails (Schletter, K-2, Everest) to a standing seam clamp. Choose the S-5-ZF Mini (“F” for “Flange”) for an economical, non-penetrating standing seam metal roof (SSMR) clamp for most “bulb” seam configurations such as ZipRib, BEMO and KalZip.

The slotted hole in the flange allows minor adjustment, making the ZF Mini ideal for walkways, module-level power electronics and a myriad of other utility mountings.

Stainless steel lock-nuts and several bolt sizes are sold separately.

The ZF Mini has a single setscrew for medium or light-duty applications, such as solar or satellite dish mounting.

Product Specifications:

  • Slotted hole in flange provides adjustment for versatile utility mounting (bolt diameter up to 10 mm (⅜”)
  • Specifically designed to fit “bulb-shaped” seam profiles
  • Unique flange design increases ease and versatility of attachment to bottom-mount rails and other nut-and-bolt connections
  • Light and medium-duty applications, such as utility mounting and bottom-mount PV rails
  • One T-30 Torx round-point setscrew (Torx bit tip provided)
  • Ideal for bottom-mounted solar PV rails
