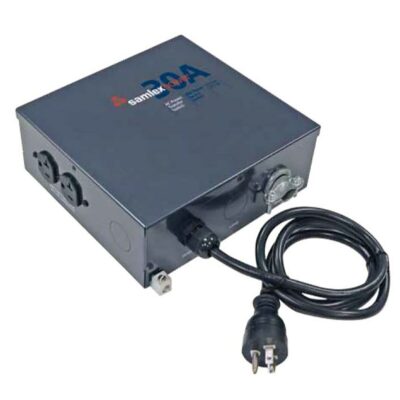

Samlex – 30A 120V Transfer Switch

Design Features

• Automatically switches between 2 separate AC input sources: Utility Power and a Generator; or Utility Power and Inverter; or Generator and Inverter
• Has rated capacity of 30 Amps at 120 VAC and is suitable for 30 Amp Utility Power Cord and Generator of up to 3.6 KVA capacity
• Uses heavy duty Double Pole Double Throw (DPDT) relay for switching both the Line and Neutral
• Can be installed on the line side of the main breaker panel allowing switching of the entire load or on the load side to only switch dedicated circuits
• DIP Switch select to enable time delay of 20 to 25 sec when transferring to a generator
• Comes with a standard North American power cord for convenient connection to 15 Amp NEMA5-15R receptacles on a generator or an inverter with up to 1800 VA capacity (Replace this cord with 30 Amp cord if full 30 Amp capacity is required)
• NEMA5-20R Duplex Receptacle for convenient connection of battery charger

Specifications

• Output: 120 VAC
• Amps: 30 Amps
• Weight: 4.4 (lbs)
• Weight: 1.99 (kg)
• Dimensions: 9 x 8.25 x 3.25 (in)
• Dimensions: 22.9 x 21 x 8.3 (cm)

Applications

• Solar power systems
• Emergency backup power
• Mobile offices
• Boats
• Lighting systems
• Recreational vehicles, camping
• Automotive
• Telecommunications
• Field work/construction sites
