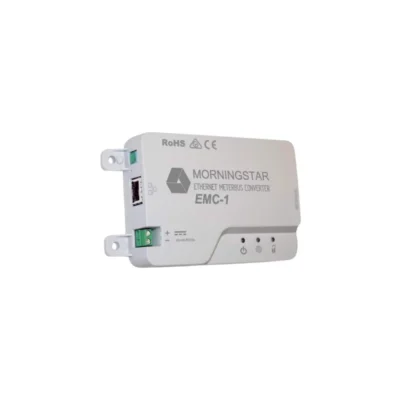

Morningstar Ethernet MeterBus Converter
The Morningstar EMC-1 is a DIN rail Ethernet MeterBus converter that bridges MorningStar MeterBus and MODBUS serial devices to Ethernet at 10/100Base-T. It enables network monitoring over MODBUS IP, HTTP, and SNMP with an 8-80 Vdc input and just 2 Watts maximum self-consumption.
$276.00
Available to ship 31 ready to ship
Ships in 1–3 business days.
Delivers in 2–5 business days
Available for pickup
Brought in to Red Deer, AB when you order.
Pickup as early as Mon, Oct 19
— we’ll tell you about drops and promotions.
The Morningstar Ethernet MeterBus Converter (EMC-1) is a monitoring accessory that connects Morningstar controllers and inverters to an Ethernet network. It converts MorningStar MeterBus and MODBUS serial communication over RJ-11 to MODBUS IP, HTTP, and SNMP over RJ-45 at 10/100Base-T speed. With a wide 8-80 Vdc input and just 2 Watts self-consumption, it suits installers building remote monitoring systems.
Key Features:
- Ethernet converter for network monitoring
- Ethernet speed 10/100Base-T
- MeterBus and MODBUS serial via RJ-11
- MODBUS IP, HTTP, SNMP via RJ-45
- DC input supply 8-80 Vdc
- Maximum self-consumption 2 Watts
- 2 ports, RJ-11 and RJ-45 connectors
- Status, Web Service, and Ethernet Write LEDs
- 35mm standard DIN rail mounting
- Operating temperature -40°F to 140°F
Ideal for solar installers and system operators who need remote data access from Morningstar charge controllers and inverters. It integrates into DIN rail enclosures and networked monitoring setups using MODBUS IP, HTTP, or SNMP, and is backed by a 5 year warranty. Order the EMC-1 (also listed as EMC1) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
