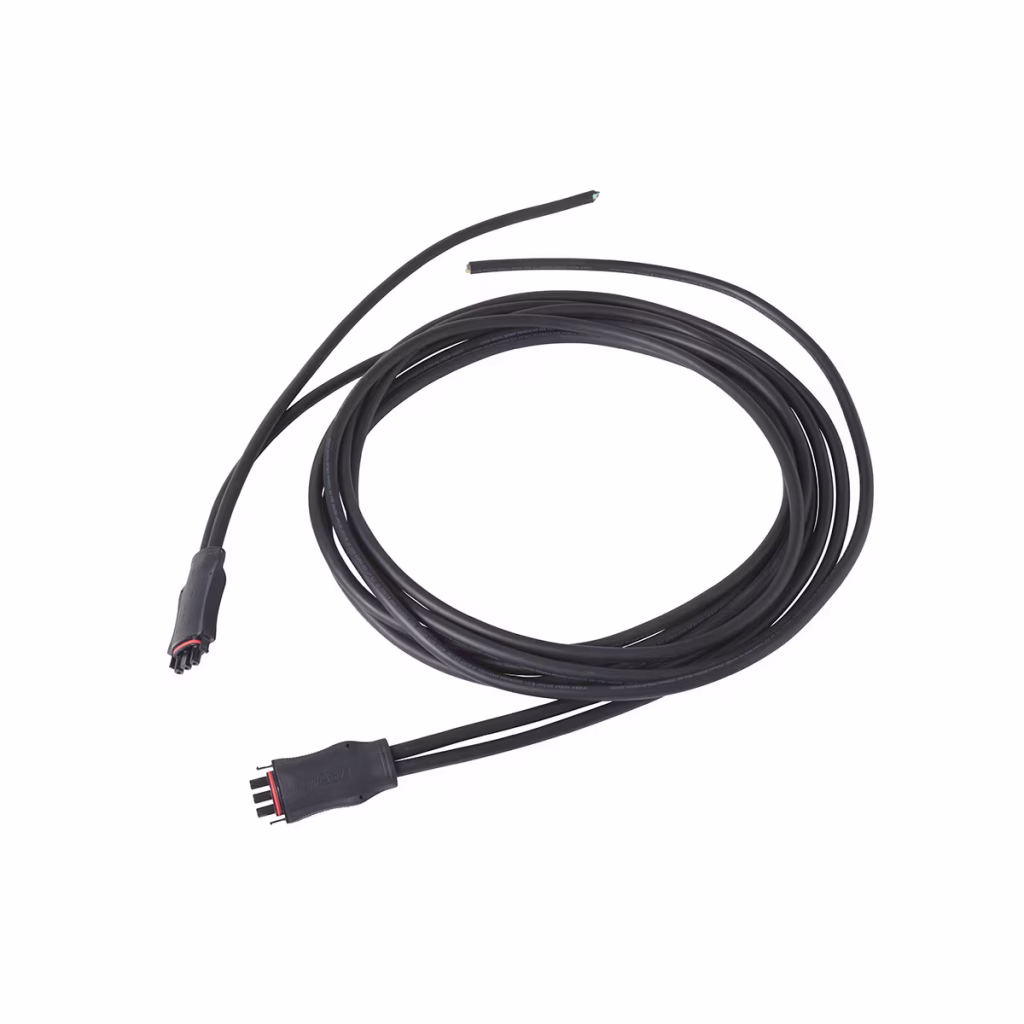

APsystems AC Bus Cable for QS1/1A DS3
The APsystems 2322301303 AC Bus Cable is a 3-conductor, 12 AWG copper trunk cable rated 600 VAC and 25 A for wiring QS1, QS1A, and DS3 microinverters. Its IP67-rated connectors, 2150 mm spacing, and -40°F to 180°F range deliver reliable outdoor daisy-chain connections across the array.
$41.00
Available to ship 112 ready to ship
Ships in 1–3 business days.
Delivers in 2–5 business days
Available for pickup
Brought in to Red Deer, AB when you order.
Pickup as early as Mon, Oct 19
— we’ll tell you about drops and promotions.
The APsystems 2322301303 AC Bus Cable is the dedicated trunk cable for interconnecting QS1, QS1A, and DS3 microinverters into a single AC branch. It uses three copper conductors at 12 AWG with PVC insulation rated to 90°C, carrying up to 25 A at 600 VAC. Pre-configured CONN 1, CONN 2, and CONN 150 connectors on a 2150 mm spacing make outdoor array wiring fast, secure, and code-ready.
Key Features:
- 3-conductor AC bus cable, 12 AWG copper
- Rated 600 VAC, 25 A working current
- PVC insulation, 90°C temperature rating
- Connectors CONN 1, CONN 2, CONN 150
- Connector spacing 2150 mm
- IP67-rated for outdoor installation
- Operating temperature -40°F to 180°F
- Conductor resistance 5.43 ohm/km
- Withstand test AC 2000V, 20mA, 1min
- Color-coded black, red, green conductors
Ideal for residential and commercial rooftop arrays built on APsystems QS1, QS1A, and DS3 microinverters, this cable provides the daisy-chained AC backbone that links units to the branch circuit while withstanding wide temperature swings and wet outdoor conditions. Order the 2322301303 from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
