Enphase Centre Tap Adaptor Cable
The Enphase QD-LINKFW-10 Centre Tap Adaptor Cable is a 4-pole QD accessory cable with 12 AWG conductors and THHN/THWN-2 insulation, rated to 277 VAC and 600 VDC. Its field-wireable QD connectors deliver fast, reliable connections across a compact 0.3 ft length, certified to UL 3003 and UL 9703 for dependable installation.
$61.00
Available to ship 22 ready to ship
Ships in 1–3 business days.
Delivers in 2–5 business days
Unavailable for pickup
Not available in Red Deer. This item ships only
— we’ll tell you about drops and promotions.

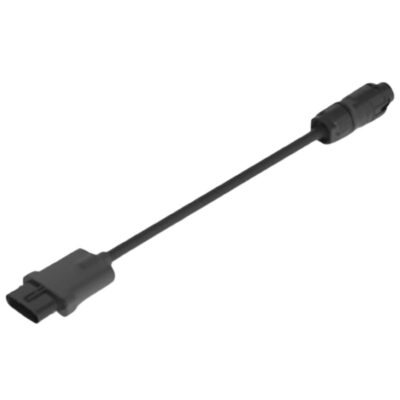

The Enphase Centre Tap Adaptor Cable (QD-LINKFW-10) is a 4-pole QD accessory cable designed for AC connections in Enphase microinverter systems. Built with 12 AWG conductors and THHN/THWN-2 insulation, it is rated to 277 VAC and 600 VDC across a compact 0.3 ft length. It combines a 4-pole QD female connector on one side with a female field-wireable QD connector on the other, and ships as a pack of 10.
Key Features:
- 4-pole QD female and male field-wireable connectors
- 12 AWG, 4 conductors, THHN/THWN-2 insulation
- Max system voltage 277 VAC
- Voltage rating 600 VDC
- Length 0.3 ft, outer diameter 11.5 mm
- AC conductor resistance 5.43 ohm/km at 20°C
- Flame test rating FT4, UV resistant
- Certified to CE, UL 3003, UL 9703
- Compliant with RoHS and OIL RES I
- Supplied as a pack of 10 adapter cables
Ideal for installers building and servicing Enphase microinverter AC circuits, this adaptor cable suits residential and commercial arrays where fast, field-wireable QD connections are needed. Its UL-listed, FT4-rated construction supports reliable performance across demanding installation environments. Order the QD-LINKFW-10 (also listed as QDLINKFW10) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
