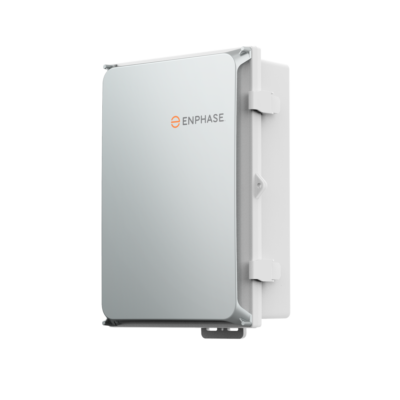

Enphase IQ Combiner 5 with Hold-Down Kit
The Enphase X-IQ-AM1-240-5-HDK IQ Combiner 5 is a NEMA Type 3R combiner enclosure rated 240 VAC and 80 A with a 125 A busbar and factory-installed hold-down kit. It integrates production metering at ±0.5% accuracy and supports up to four 2-pole distributed generation breakers for a clean, code-friendly PV interconnection.
$1,183.00
Available to ship 176 ready to ship
Ships in 1–3 business days.
Delivers in 2–5 business days
Available for pickup
Brought in to Red Deer, AB when you order.
Pickup as early as Mon, Oct 19
— we’ll tell you about drops and promotions.
The Enphase IQ Combiner 5 (X-IQ-AM1-240-5-HDK) is a polycarbonate combiner enclosure that consolidates Enphase interconnection equipment into a single NEMA Type 3R box. Rated 240 VAC and 80 A with a 125 A busbar and 10 kAIC fault current rating, it houses up to four 2-pole distributed generation breakers and a pre-installed 200 A solid-core production metering CT. Designed for installers pairing IQ6, IQ7, and IQ8 Series microinverters with integrated metering and monitoring.
Key Features:
- 240 VAC, 80 A with 125 A busbar
- NEMA Type 3R polycarbonate enclosure, silver
- 10 kAIC fault current rating
- Up to four 2-pole DG breakers
- 200 A solid-core production CT, ±0.5%
- Consumption and battery monitoring ±2.5%
- Factory-installed hold-down kit
- WiFi, Ethernet, Bluetooth BLE4.2, power line comms
- 14.75 x 19.5 x 6.63 in, 16.5 lbs
- 5-year warranty, UL 1741 and CSA certified
Ideal for residential and light-commercial PV systems using IQ6, IQ7, and IQ8 Series microinverters. It integrates with the IQ System Controller 3/3G and IQ Battery 5P, accepts Eaton BR, Siemens Q, and GE/ABB THQL breakers, and mounts to walls with bottom, back, and side conduit entry. Order the X-IQ-AM1-240-5-HDK (also listed as XIQAM12405HDK) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
