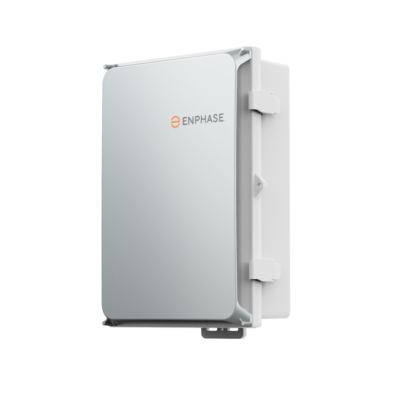

Enphase IQ Combiner 5C
The Enphase X-IQ-AM1-240-5C IQ Combiner 5C is a NEMA Type 3R combiner panel rated 120/240 VAC with an 80 A busbar amperage and a 125 A busbar rating. It integrates production metering at ±0.5% accuracy with a pre-installed 200 A CT and supports up to four 2-pole Eaton BR series breakers for a clean, code-ready installation.
$1,840.00
Available to ship 56 ready to ship
Ships in 1–3 business days.
Delivers in 2–5 business days
Available for pickup
Brought in to Red Deer, AB when you order.
Pickup as early as Mon, Oct 19
— we’ll tell you about drops and promotions.
The Enphase IQ Combiner 5C (X-IQ-AM1-240-5C) is a wall-mount combiner panel that consolidates Enphase system connections, metering, and communication into a single enclosure. Rated 120/240 VAC at 60 Hz with an 80 A rating and a 125 A busbar, it houses a pre-installed 200 A production metering CT wired to the IQ Gateway. Its NEMA Type 3R polycarbonate housing suits outdoor installs alongside IQ6, IQ7, and IQ8 Series microinverters.
Key Features:
- 120/240 VAC, 60 Hz, 80 A rating
- 125 A busbar, 10 kAIC fault current rating
- 64 A maximum continuous current rating
- 200 A production CT, ±0.5% metering accuracy
- Up to four 2-pole Eaton BR series DG breakers
- NEMA Type 3R polycarbonate, -40°F to 115°F
- WiFi, Ethernet, Bluetooth, and Cellular comms
- 14.75 x 19.5 x 6.63 in, 16.5 lbs
- Bottom, back, and side conduit entry
- 5-year warranty, UL 1741 and CSA certified
Ideal for residential Enphase installations combining IQ6, IQ7, and IQ8 Series microinverters with the IQ Gateway. It supports consumption and IQ Battery metering, integrates with compatible IQ System Controllers and the IQBATTERY-5P-1P-NA, and provides code-ready branch circuit distribution for grid-tied and battery-backed systems. Order the X-IQ-AM1-240-5C (also listed as XIQAM12405C) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
