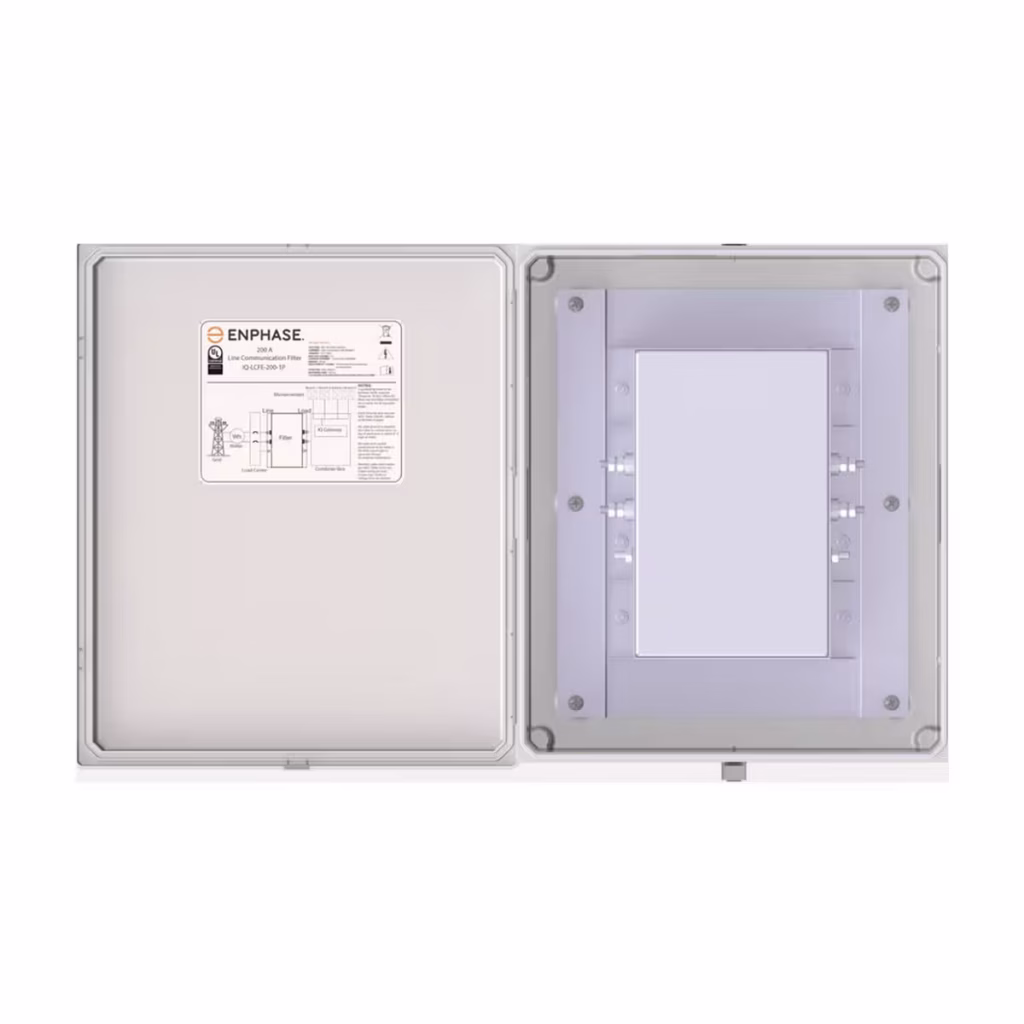

Enphase Line Communication Filter 200A Single Phase

The Enphase Line Communication Filter (IQ-LCFE-200-1P) is a 200A single-phase power line filter that isolates powerline communication signals on Enphase microinverter systems. Rated at 300 VAC and 60 Hz with 160 A continuous amperage, it provides 60 dB isolation at 110 kHz and a maximum DCR of 1.5 mohm. Housed in a rugged IP66, NEMA 4 enclosure, it operates across a wide temperature range for demanding installations.

Key Features:

• 200A single-phase power line filter
• Voltage rated 300 VAC, max 300 VAC + 10%
• Continuous amperage 160 A at 60 Hz
• Isolation 60 dB at 110 kHz
• Maximum DCR 1.5 mohm
• IP66 and NEMA 4 enclosure rating
• Operating temperature -40°F to 122°F
• M10 stud terminals, 18 N m torque
• 250 kcmil copper / 350 kcmil aluminum cable
• UL 1741 certified, 2-year warranty

Ideal for utility-interactive Enphase microinverter installations requiring powerline communication isolation on single-phase 200A services. Its weatherproof enclosure and wide operating temperature suit outdoor Canadian sites, while M10 stud terminals accept large copper or aluminum conductors for reliable integration. Order the IQ-LCFE-200-1P (also listed as IQLCFE2001P) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
