FOMWare SEA3 System Edge Box (Canada)

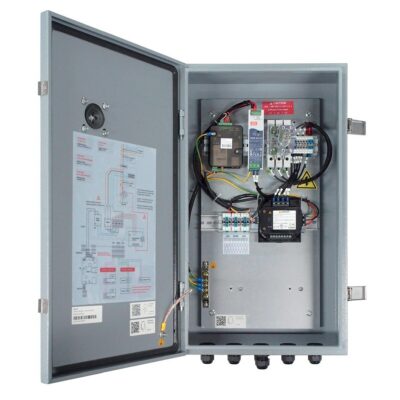

The Solis SE-A3 FOMWare SEA3 is a System Edge Box built around the EHX2-E gateway for centralized solar plant monitoring and metering. Rated at 600 VAC and 15A with a NEMA 4 metal chassis, it delivers 0.1% current and voltage accuracy and 0.5% active energy accuracy. Supporting up to 32 inverters and 10 FCB adapters, it combines revenue-grade metering, communications, and a 0-export kit in one wall or pole mounted enclosure.

Key Features:

• System Edge Box with EHX2-E gateway
• 600 VAC rating, 15A / 800V breaker
• NEMA 4 metal chassis, IP protected
• 0.1% current and voltage accuracy
• 0.5% active, reactive and energy accuracy
• Supports up to 32 inverters, 10 FCB adapters
• 4G, Ethernet, WiFi, BLE 4.2, CAN, RS485
• Modbus RTU/TCP, MQTT, 10 ports/outputs
• 0-export kit and WDR-60-24 power supply
• UL 3141, UL508A certified, -4°F to 140°F

Ideal for commercial and utility-scale solar installations requiring accurate metering, export control, and remote monitoring. The SEA3 integrates with SCADA via Modbus TCP and cloud platforms via MQTT, includes RCT24-1000-5M Rogowski coils rated 5A-1200A, and mounts on a wall or pole for flexible field deployment. Order the SE-A3 (also listed as SEA3) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
