Fomware SEA4 System Edge Box (Canada)

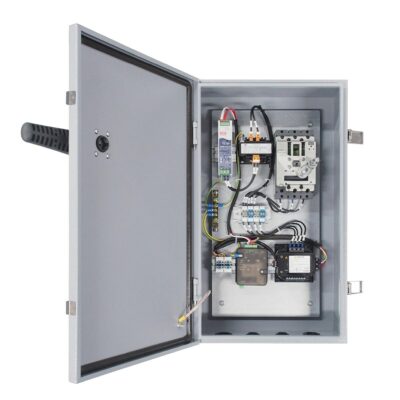

The Solis SE-A4 Fomware SEA4 is a wall-mount System Edge Box built for utility-grade solar monitoring and export control. Housed in a NEMA 4 metal chassis, it integrates an EHX2-E gateway, an Acuvim-CL (RGM) meter and RCT24-1000-5M Rogowski coils rated 5A-1200A. Rated 600 VAC at 15 A, it delivers zero export control for up to 32 inverters with a control loop response under 2 seconds, suiting commercial and industrial PV plants across Canada.

Key Features:

• 600 VAC voltage rating, 15 A amperage
• NEMA 4 metal chassis, wall mount
• EHX2-E gateway with 32 hardware connections
• Zero export control for up to 32 inverters
• Control loop response less than 2 seconds
• Bluetooth, Cellular LTE, Ethernet, WiFi, RS485, CAN
• Acuvim-CL meter, 0.1% current and voltage accuracy
• Rogowski coil RCT24-1000-5M, 5A-1200A, 0.5% accuracy
• Operating temperature -4°F to 140°F
• Certified CE, FCC Part 15, RoHS, UL 3141, UL508A

Designed for commercial and industrial solar installations requiring accurate metering and grid export management, the SEA4 integrates with inverter fleets over Modbus RTU, Modbus TCP and CAN, and connects to cloud or SCADA systems via MQTT and Ethernet, supporting up to 10 Modbus TCP client connections. Order the SE-A4 (also listed as SEA4) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
