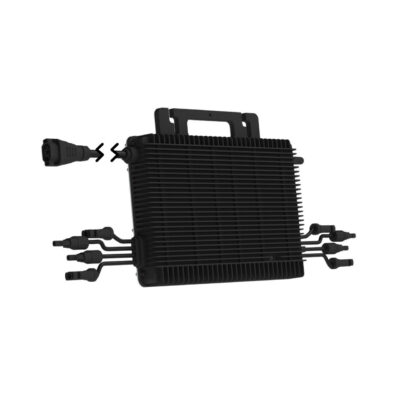

Hoymiles HMS-700-2T 700VA Dual Module Microinverter

The Hoymiles HMS-700-2T-NA HMS-700-2T is a dual-module microinverter designed for residential and small commercial PV systems that pair two panels to one unit. Its 2-in-1 design uses two independent MPPT trackers to handle modules from 280 to 470+ W, delivering 638 VA continuous and 700 VA peak output at up to 96.70% efficiency. With IP67 sealing, natural convection cooling and Sub-1G communication, it suits demanding Canadian climates and installs.

Key Features:

• 700 VA peak, 638 VA continuous output
• 96.70% efficiency, 99.80% nominal MPPT
• 2 independent MPPT trackers, 2-in-1 design
• Supports 280 to 470+ W modules
• MPPT range 16-60 V, start-up 22 V
• Max PV input 60 VDC, 2 x 13 A per MPPT
• 240/211-264 V or 208/183-228 V output
• IP67 rated, -40°F to 149°F, fanless cooling
• NEC 690.12 and CEC rapid shutdown compliant
• 12-year warranty, UL1741SB and CSA certified

Ideal for rooftop residential and small commercial arrays using higher-power modules, the HMS-700-2T integrates with the Hoymiles S-Miles Cloud monitoring platform via Sub-1G communication. Up to 9 units connect per 10 AWG branch, providing a scalable, galvanically isolated solution for code-compliant Canadian installations. Order the HMS-700-2T-NA (also listed as HMS7002TNA) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
