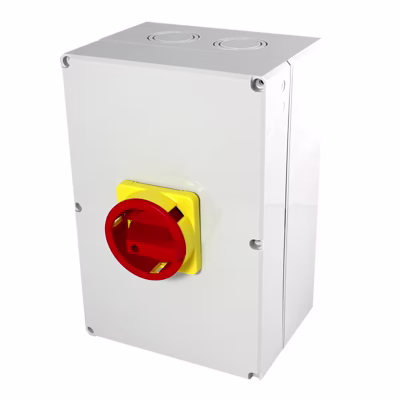

IMO 32A 8-Pole Enclosed Isolator / Disconnect Switch (AC)

The IMO PE69-8032 32A 8-Pole Enclosed Isolator / Disconnect Switch is a load-break AC disconnect built for combiner and disconnect applications in solar and industrial systems. Rated at 32A general use with a 600 VDC voltage rating and 690V rated insulation, it houses 8 poles in an IP66 enclosure. Its wide -40°F to 104°F operating range and 200,000-cycle mechanical life suit demanding Canadian installations requiring dependable, safe isolation.

Key Features:

• 32A rated operational current (AC21A)
• 8-pole configuration, 600 VDC rating
• Disconnection performed up to 690V
• IP66 enclosure rating
• Operating range -40°F to 104°F
• Mechanical life of 200,000 cycles
• Short-time withstand 400A for 1 sec
• Cable cross sections 4 – 50 mm² solid/stranded
• DIN rail mounting, M6 terminal screws
• cUL, UL, EN 60947-3, VDE 0660 certified

Ideal for solar PV combiner and disconnect duty, motor isolation, and industrial main-switch applications, this enclosed isolator integrates via DIN rail mounting and accepts flexible cables from 4 to 16 mm². Its IP66 protection and wide temperature tolerance make it well suited to harsh outdoor Canadian environments, backed by a 12-year warranty. Order the PE69-8032 (also listed as PE698032) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
