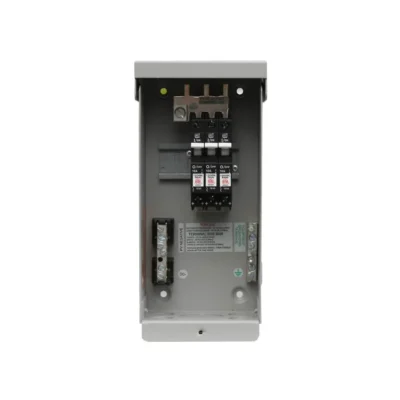

MidNite MNPV3 3-String Array Combiner Box

The MidNite MNPV3 is a compact 3-circuit PV array combiner box built for residential and light commercial solar installations. Housed in powder-coated aluminum with stainless hardware, it combines up to three strings using breakers up to 150 volts, or two strings using fuses up to 600 volts. Rated 60 A at 150 VDC and UL 1741 certified, it provides a lockable, outdoor-rated combining and disconnect point.

Key Features:

• Array combiner box rated 60 A at 150 VDC
• Combines up to 3 strings, 1 output
• Breaker inputs up to 150 V, or 2 fused strings to 600 V
• Max OCPD 30 A fuses or 63 A 150 V breakers (OCPD not included)
• String input wire range 14-6 AWG
• Output wire range 14 to 1/0 AWG, 90 deg C lugs
• NEMA Type 3R, outdoor rainproof and lockable
• Powder-coated aluminum with custom molded deadfront
• 7.9 x 3.4 x 4.9 in, 2 lb, wall or pole mount
• UL 1741 certified, 5-year warranty

Ideal for combining PV strings ahead of a charge controller or inverter, the MNPV3 supports vertical wall, pole, or sloped roof mounting up to 14 degrees. Its outdoor rainproof enclosure and flexible breaker or fuse configuration suit off-grid and grid-tied systems needing a clean, lockable disconnect point.
