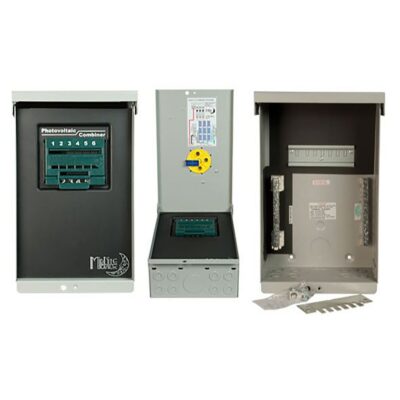

MidNite Solar 6 Position Disconnecting Combiner
The MidNite MNPV6-DISCO Solar 6 Position Disconnecting Combiner is a wall-mount PV combiner box built for up to 6 strings, rated at 120 A and 150 VDC. Its splittable 120 Amp tin plated copper bus bars and IP54 aluminum enclosure deliver reliable outdoor-rated combining and disconnection for solar arrays.
$373.00
Available to ship 22 ready to ship
Ships in 1–3 business days.
Delivers in 2–5 business days
Available for pickup
Brought in to Red Deer, AB when you order.
Pickup as early as Mon, Oct 19
— we’ll tell you about drops and promotions.
The MidNite MNPV6-DISCO Solar 6 Position Disconnecting Combiner (MNT-1110) is a wall-mount combiner and disconnect box for photovoltaic arrays, combining and protecting up to 6 PV strings. Rated at 120 A and 150 VDC, it features a powder coated aluminum enclosure with an IP54 rating for outdoor use. DIN rail capacity accepts 6, 150V or 3, 300 Volt breakers, making it suited to installers building code-compliant, serviceable solar systems.
Key Features:
- 120 A rated, 150 VDC voltage rating
- Combines up to 6 PV strings
- 120 Amp tin plated copper bus bars, splittable
- DIN rail fits 6 150V or 3 300V breakers
- Powder coated aluminum enclosure, IP54 rated
- Rated for outdoor use, wall mount
- PV negative and ground bus bars, 14 openings each
- 1 1/4 inch center knockout, 1/2 inch side knockouts
- 15″ x 9″ x 7.25″, 6 LB
- 5 year warranty
Ideal for residential and commercial PV installations requiring string combining and disconnect in a single outdoor-rated box. Its splittable bus bars and flexible DIN rail breaker capacity integrate with 150V or 300V circuit breakers, giving installers a durable, code-friendly solution for solar array combining.
