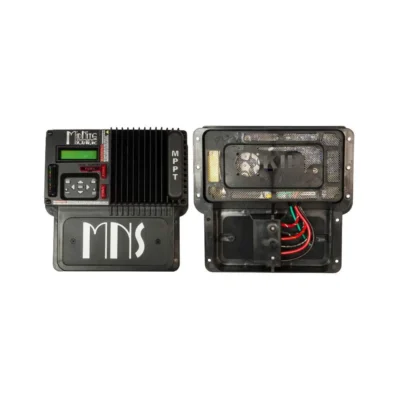

MidNite Solar Kid 150V MPPT Class 1 Div 2 Charge Controller

The MidNite Solar Kid (MNKID-C1D2) is a compact 150 VDC MPPT charge controller rated at 30 A, built for solar systems serving 12V through 48V nominal battery banks. Class 1 Div 2 certified and conformal coated for harsh environments, it delivers HyperVOC operation up to 162VOC for cold Canadian climates. With an LCD display, keypad menu access, and true paralleling between two units, it suits off-grid, backup, and remote power installations.

Key Features:

• 30 A MPPT charge controller, 150 VDC input
• PV open circuit 150VDC + HyperVOC (162VOC)
• Nominal battery 12V through 48V, range 9V to 64V
• Bulk, Absorb, Float and adjustable Equalization
• Battery types: Flooded, AGM, Gel, Calcium, Lithium BMS, Custom
• True paralleling between 2 units with active current sharing
• Auto Gen-Start, load terminal configurable as wind clipper
• RS232 and USB, Whizbang Jr. communication port
• Operating -40°F to 122°F, IP52, no fan
• C1D2, CE, CSA, ETL, UL 458, UL 1741, 5-year warranty

Ideal for off-grid, cabin, backup, and remote power systems where cold-climate performance and hazardous-location certification matter. Its programmable auxiliary output, lighting controller, and Whizbang Jr. port integrate with MidNite Solar monitoring and battery temperature sensing for flexible, customizable installations. Order the MNKID-C1D2 (also listed as MNKIDC1D2) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
