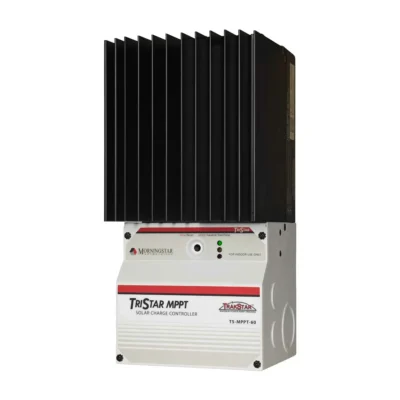

Morningstar TriStar MPPT 45A Charge Controller
Morningstar
SKU: TS-MPPT-45

Morningstar TriStar MPPT 45A Charge Controller

$895.00

or $78.67/mo for 12 mo at 9.96% APR with Affirm

The Morningstar TS-MPPT-45 TriStar MPPT 45A is an MPPT solar charge controller with a 150 VDC maximum PV input and selectable 12/24/48 V battery charging. Its 4-stage charging algorithm and 99% efficiency deliver up to 2400 watts of nominal maximum output power at 24V from a PV array rated to 4.2 kW.

Shipping 13 in stock
Ships in 1–3 days
Delivers in 2–5 business days
Pickup
Ready Wed, Nov 18
We bring it in when you order
Morningstar

49 products · See all

Datasheet & manuals

3 documents · View

Dealer pricing
Questions about this product? A real person picks up.
or
Mon – Fri: 8:30am – 4:30pm MT

Need a wiring diagram? Get one free with your order →

The Morningstar TriStar MPPT 45A (TS-MPPT-45) is an MPPT solar charge controller for off-grid and battery-based systems using 12, 24 or 48 V banks. It accepts up to 150 VDC PV input, delivers 45 A of charge current, and supports a PV array rated to 4.2 kW. With 99% efficiency, a 4-stage charging algorithm and epoxy encapsulation, it suits demanding residential, marine and remote Canadian installations.

Key Features:

  • 45 A MPPT charge controller, 99% efficiency
  • 12/24/48 V battery charging, 8-72 VDC range
  • Max PV input 150 VDC, array to 4.2 kW
  • 2400 W nominal max output at 24V
  • 4-stage: Bulk, Absorption, Float, Equalize
  • Voltage accuracy 0.1% 50mV, 100mV at 48V
  • Transient surge protection 4500 W/port
  • EMC-1, Meterbus and RS232 communication
  • -40F to 122F, IP20, Type 1 indoor vented
  • Certified UL 1741, cETL, CSA, CE; 5-year warranty

Ideal for off-grid solar, marine and telecom systems needing reliable multi-voltage charging, the TriStar MPPT 45A integrates with a remote temperature sensor, Meterbus accessories and RS232 monitoring. Its tropicalized construction and 2 AWG wiring capacity make it well suited to harsh climates and larger battery banks. Order the TS-MPPT-45 (also listed as TSMPPT45) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.

Documents

Datasheet, installation manual and warranty for the Morningstar TS-MPPT-45, straight from the manufacturer.
