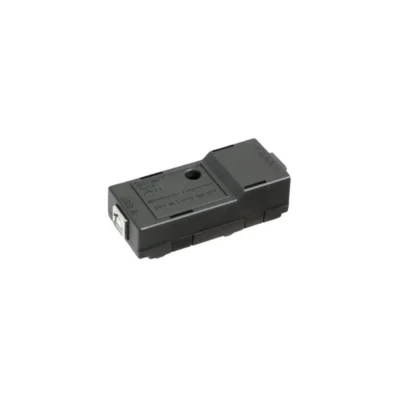

Morningstar USB Meterbus Adapter
Brand: Morningstar
$78.00
Found a lower price? We’ll match it – just ask.
The Morningstar USB Meterbus Adapter (UMC-1) is a fully opto-isolated USB monitoring accessory that connects compatible controllers to a computer via a standard RJ-11 connection. It supports Meterbus, Modbus, and USB 2.0 communication for reliable data access with the SunSaver MPPT, SunSaver DUO, and SureSine.
In Stock
Delivers in 2–5 business days
Shipping
Ships Nationwide
In 1–3 business days
Pickup
Unavailable
This item ships only
Overview
The Morningstar USB Meterbus Adapter (UMC-1) is a monitoring accessory that links compatible Morningstar devices to a computer for setup and data logging. It uses an RJ-11 connection and supports Meterbus, Modbus, and USB 2.0 communication. Fully opto-isolated for safe operation, it ships with both cables required and works with 4-conductor or 6-conductor RJ-11 wiring, making it ideal for technicians and system integrators.
Key Features:
- USB adapter for system monitoring
- Meterbus, Modbus, USB 2.0 communication
- RJ-11 connector interface
- Fully opto-isolated for safe operation
- Accepts 4-conductor or 6-conductor RJ-11
- Includes USB B to USB A cable, 1 meter
- Includes RJ-11 telephone cable, 1 meter
- Compatible with SunSaver MPPT, SunSaver DUO, SureSine
- Weight 1 lb
- 5-year warranty
Designed for installers and system owners who need reliable computer-based configuration and monitoring, the UMC-1 connects the SunSaver MPPT, SunSaver DUO, and SureSine to Morningstar software. Its opto-isolated USB interface suits both field service and permanent monitoring setups.
