S-5! – DualGard™ Snow Bars for Metal Roof Profiles

Brand: S-5!

Contact Us for Availability

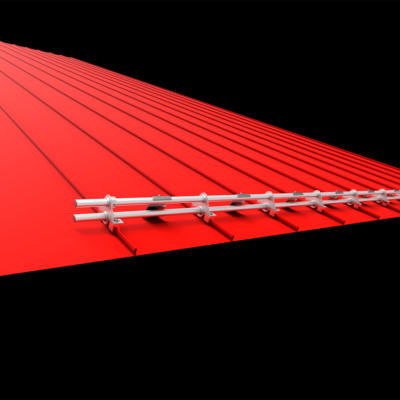

A Two-Pipe Snow Guard System for Standing Seam and Corrugated Metal Roofs

DualGard is a two-pipe, 1” dia, (25 mm), aluminum, snow bar system that can be powder-coated or anodized to match your roof if desired. It can be used on almost any standing seam metal roof, in addition to corrugated roof profiles.

For standing seam metal roofs, DualGard utilizes two S-5! Mini clamps, providing a broad base of attachment for extra holding strength when compared with other two-pipe systems.

For corrugated, DualGard uses the CorruBracket™, providing you versatile mounting options (requires a deck below).

Downloads

Datasheet

Installation Manual

A Two-Pipe Snow Guard System for Standing Seam and Corrugated Metal Roofs

DualGard is a two-pipe, 1” dia, (25 mm), aluminum, snow bar system that can be powder-coated or anodized to match your roof if desired. It can be used on almost any standing seam metal roof, in addition to corrugated roof profiles.

For standing seam metal roofs, DualGard utilizes two S-5! Mini clamps, providing a broad base of attachment for extra holding strength when compared with other two-pipe systems.

For corrugated, DualGard uses the CorruBracket™, providing you versatile mounting options (requires a deck below).

Benefits:

Compatible with standing seam metal roof profiles using S-5! clamps or CorruBracket
Can be color-finished (anodized or powder-coated) to match the roof
Low-cost, job-specific P.E. wet stamp available for standing seam applications
Engineer a system for any site-specific roof with the online S-5! Snow Guard Calculator

DualGard Features:

One-inch diameter, two-pipe system
Two anchor points per DualGard bracket, reducing moment arm for added strength
Can be used with CorruBracket
DualGard bracket design provides lateral stability

DualGard™ Components

The specific components, quantities and costs for your system are dependent upon calculating your particular system through our Snow Guard Calculator.

DualGard Bracket

Bracket securing crossmembers to clamps. Specially designed for lateral system stability.

DualPipe™

1” diameter 6,000 series aluminum pipe crossmember with ⅛” wall.

DualPipe comes with DualGard Splice.

Installs in 7′ 8″ lengths.

DualClip™

Retards migration of snow and ice beneath crossmembers. Optional with user discretion but recommended on seam heights of 2” and greater. DualClip can be assembled to crossmember during or following system installation.

This component is available in two sizes to accommodate various seam height dimensions.

DualGard Splice

Connects adjacent 1” pipes for continuity. Splice automatically provides for thermal linear expansion and contraction of the DualGard assembly.

Splice comes with DualPipe.

DualCollar™

Installed on DualPipe at the ends of an assembly, locking DualPipe in place to prevent lateral shifting.

DualGard Endcaps

Endcaps keep rain, dirt or debris out of the pipes. DualCollars and EndCaps are packaged together.

Compatible S-5! Mini Clamp

For use on standing seam profiles. See individual pages to select the best attachment solution for your metal roof profile.

CorruBracket

For system attachment to exposed-fastened roofs with a deck below. Configurations and dimensions of these roof profiles widely vary. See CorruBracket page for critical dimensions to ensure proper fit.
