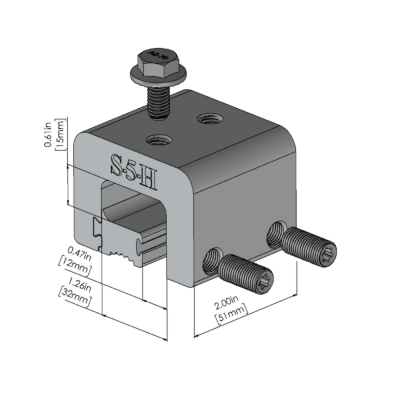

S-5-H™ Clamp

Brand: S-5!
SKU: S-5-H

The S-5-H clamp (“H” is for Horizontal seam) is designed to accommodate horizontal seams that are not fully closed. The setscrews are side-install rather than top-down. When the seam is horizontally-oriented but completely closed.

This clamp design allows attachment anywhere along the seam and fitment over wider horizontal seams.

Product Overview
Detailed Specifications
Downloads & Support

$39.00

S-5-H™ Clamp
Availability by Warehouse
VancouverN/A
N/A
EdmontonIn Stock
In Stock
CalgaryN/A
N/A
DartmouthN/A
N/A
StratfordLow Stock
Low Stock
Barrie
Victoria
In Stock – Product is in stock, available and ready to ship.
Low Stock – Product has limited stock available and ready to ship.
On Order * – Product is currently on order with the supplier and has a ship date.
Please Call – Currently out of stock, unavailable or available thru special order.
Discontinued – Product no longer available.

In Stock

Limited Lifetime Warranty

Made in the USA

S-5! H Clamp, a versatile and durable clamp designed for securely attaching solar panels and other components to standing seam metal roofs, providing stability and ease of installation.
S-5!

Canada’s Largest Inventory

BC · AB · ON · NS

Price Match Guarantee

Proudly 100% Canadian

S-5-H™ Clamp
Overview
Specs
Downloads

Product Specifications:

  • For standing seam panels with horizontal seam orientation (single-folded)
  • Accommodates roof panels with a horizontal seam not fully closed
  • Two-piece design allows for easy attachment anywhere along seam length
  • Insert allows clamp to fit over wider horizontal seams up to .75” (19 mm)
  • Used with snow retention and other heavy-duty applications
  • Two T-30 Torx round-point setscrews (Torx bit tip provided)
  • One M8 bolt included
Fits Metal Roof Manufacture: ArtspanBridger Steel IncChief IndustriesDynamic MetalsEcoSpanFALKInland BuildingsMetal SalesMetallion IndustriesNew Tech MachineryPremium Panels IncRigid Global BuildingsSchulte Building SystemsTaylor Metals
Fits Metal Roof Profile: 2” Snap Seam, DM1500 (SF), LTC Panel, Magna Loc 90 (SF), MI 275 Single (90deg) Seaming, MS-200 (Single Fold), Platinum Series Trip-Lok, PS/L275 (Seamed), Skyline Roof 90 deg, SSQ 275 (Seamed), SSR 42 SF, TS-324 Triple-Lock, TS-324 TripleLok
Fits Metal Roof Seam Type: 1.5" Single Fold, 2" Single Fold, 2.375" Single Fold, 3" Trap Single Fold
