S-5! RibBracket II Metal Roof Mount

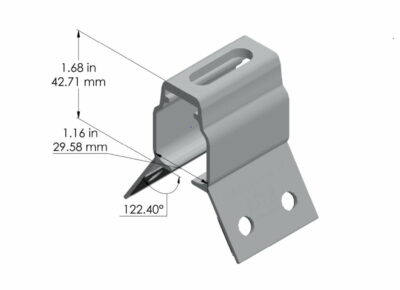

The S-5! S-5-RibBracket-II S-5! RibBracket II is a structural aluminum bracket for metal roof mounting, designed to attach directly onto the crown of a panel by straddling the profile. Measuring 2.49 x 1.75 x 1.09 in, it features four 8 mm thru holes, M8 fasteners, and a factory-applied EPDM rubber gasket. Its S-5!-patented reservoir conceals the gasket from UV exposure, and it is compatible with the S-5-PV Kit and ancillary applications.

Key Features:

• Structural aluminum roof-mount bracket
• Mounts directly onto crown, straddling profile
• Dimensions 2.49 x 1.75 x 1.09 in
• 4x 8 mm thru holes, M8 fasteners
• Slotted hole 0.40 x 1.25 in
• Factory-applied EPDM rubber gasket
• Patented reservoir conceals gasket from UV
• Tilt angle 50°
• Compatible with S-5-PV Kit
• Lifetime warranty, made in the USA

Ideal for metal roof solar and ancillary mounting projects, the RibBracket II suits installers seeking a durable, weather-sealed attachment point. It integrates with the S-5-PV Kit and other S-5! ancillary applications, delivering a lasting, code-conscious connection across Canadian climates. Order the S-5-RibBracket-II (also listed as S5RibBracketII) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
