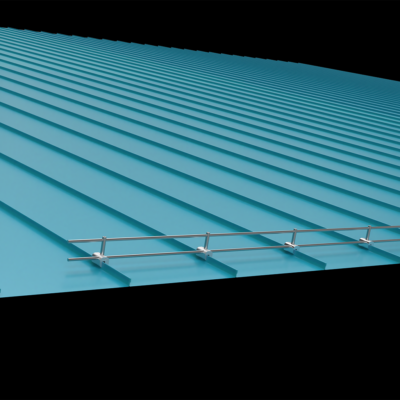

Favored by architects and roof designers alike, the cylindrical shapes and sleek design of our metal roof snow fence both complement the roof and seamlessly functions with your standing seam metal roof design. This system in aluminum is suited to zinc, aluminum and coated steel roofs. The brass version is available for use on copper and lead-coated copper roofs.
S-5!’s SnoFence features a two-rail assembly – offering you architectural appeal and durable performance in medium-duty applications.
Looking for a single-rail system for lighter-duty and economy? See SnoRail, X-Gard 1.0, ColorGard.
Benefits of Metal Roof Snow Stops:
- Easy installation
- Quality construction without the inconsistencies of soldered snow guards
- Sleek architectural aesthetics
- Available in brass for copper batten and standing seam roofs
SnoFence – Metal Roof Snow Stop Features
- Low-cost, two-rail snow retention system
- Clamps are available in aluminum or brass
- SnoRod™ in stainless is the best choice for steel, aluminum and zinc roofs
- SnoRod™ in brass is best for traditional copper roofing
- Maximum clamp spacing is 24” (closer for heavier snow loads)
- S-5-ASF (“A” is for Architectural Aluminum) is suitable for use on vertical standing seams with ≤.40” seam width or horizontal (single-fold) dimension of ≥ .685”
- S-5-BSF (“B” is for brass) is suitable for use:
- On traditional double-folded copper standing seams with ≤.24″ compressed seam width
- On traditional (batten seam) dimension of ≥.50”
- Horizontally on single-fold copper roofing with seam dimensions ≥.65”
Aluminum/Stainless SnoFence Components
S-5-ASF™ Clamp
Suitable for most vertical and horizontal standing seam profiles of all metals except copper (rotating the clamp 90° for horizontal seams); seam (thickness) dimension of .40″ or less.
S-5-AE™
Used at a rate of one per 50′ of assembly and at ends of assembly in lieu of ASF clamp to “fix” SnoRod, preventing excessive lateral rod migration.
SnoRod™
⅜” diameter solid stainless steel rod inserted through S-5-ASF clamps just above panel seams for SnoFence. The second SnoRod is positioned 2” above the first by inserting through SnoPosts. Contact your S-5! distributor for pricing and details on stainless steel SnoRod. (Aluminum SnoRod is not recommended).
SnoRod Coupling
Ensures end-to-end rod alignment and continuity while allowing for thermal movement.
SnoClip™
Retards migration of snow and ice beneath crossmembers. Optional with user discretion but recommended on seam heights of 2” and greater. SnoClip is assembled to crossmember during installation.
This component is available in two sizes to accommodate various seam-height dimensions.
SnoPost™
The stainless SnoPost threads into the S-5-ASF clamp and provides for the addition of a second SnoRod about 2” above the first.
SnoPost E™
Used with the S-5-AE clamp to keep the upper SnoRod of the assembly locked into place.
Used at a rate of one per 50′ of assembly and at ends of assembly to “fix” SnoRod, preventing excessive lateral rod migration.
