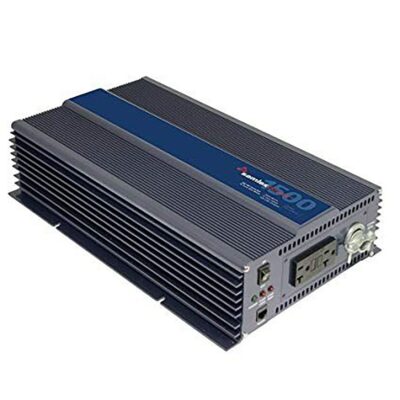

Samlex 1500W 12V Pure Sine Wave Inverter
$969.00
or $85.17/mo for 12 mo at 9.96% APR with

The Samlex PST-1500-12 is an off-grid pure sine wave inverter delivering 1500W continuous power from a 12 VDC input to 120 VAC single-phase output. It provides 3000W surge for 8 ms, up to 12.5 A output current, and multiple protection shutdowns for reliable off-grid and mobile power.
Shipping
Special order
Ordered in for you. Ask us for timing.
Pickup
Not in Red Deer
Contact us for availability.
We’ll email you once if the everyday price is lowered. No other mail.
Notify me when it’s availableOne email when it’s back in stock in Red Deer.
Mon – Fri: 8:30am – 4:30pm MT
Need a wiring diagram? Get one free with your order →
The Samlex PST-1500-12 is an off-grid pure sine wave inverter that converts 12 VDC into 120 VAC single-phase power for cabins, RVs, and mobile systems. It delivers 1500 W continuous with a 3000 W surge for 8 ms, 85% efficiency, and a stable 120 VAC ± 3% output at 60 Hz ± 1%. Comprehensive protection covers overload, short circuit, over-temperature, and low DC voltage conditions.
Key Features:
- 1500 W continuous, 3000 W surge for 8 ms
- Pure sine wave output, 85% efficiency
- Input 12 VDC, range 10.7-16.5 VDC
- Output 120 VAC ± 3%, 60 Hz ± 1%
- Maximum output current 12.5 A
- Maximum input current 200 A
- Overload, short circuit and GFCI protection
- Over-temp shutdown 90°C, auto reset at 65°C
- 10.35 x 18.43 x 4.16 in, 15.6 lbs
- CSA, UL 458 and FCC certified, 2-year warranty
Ideal for off-grid cabins, recreational vehicles, work trucks, and backup power setups running sensitive electronics. Operating from -4°F to 104°F with 5 x 40A blade fuses and temperature-controlled cooling, it integrates into 12 VDC battery banks needing clean 120 VAC single-phase power. Order the PST-1500-12 (also listed as PST150012) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
Documents
Datasheet and installation manual for the Samlex America PST-1500-12, straight from the manufacturer.
