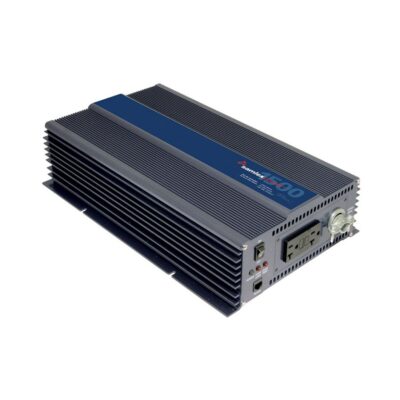

Samlex PST 1500W 24V Pure Sine Inverter

The Samlex PST 1500W 24V (PST-1500-24) is an off-grid pure sine wave inverter that converts 24 VDC into clean 120 VAC single-phase power. Rated at 1500 W continuous with 3000 W surge for 8 ms, it accepts a 21.4 to 33 VDC input range and delivers a stable 120 VAC ± 3% at 60 Hz ± 1%. Comprehensive shutdown protection and forced air cooling make it ideal for sensitive AC loads in mobile and remote installations.

Key Features:

• 1500 W continuous, 3000 W surge for 8 ms
• Pure sine wave output, 85% efficiency
• 24 VDC input, 120 VAC single-phase output
• DC input range 21.4 to 33 VDC, max 100 A
• Output 120 VAC ± 3%, 60 Hz ± 1%, max 12.5 A
• LED indicators for power, overload, over temperature
• Overload, short circuit, ground fault protection
• Two temperature-controlled cooling fans
• NEMA5-20R GFCI receptacle and hardwire terminal block
• CSA C22.2, UL 458, FCC Part 15(B) Class B

Suited to off-grid cabins, RVs, work vehicles and remote power systems running sensitive AC equipment from a 24 V battery bank. Operating from -4°F to 104°F and weighing 15.6 lbs, it accepts the optional RC-300 wired remote control with 25′ cable for convenient operation. Order the PST-1500-24 (also listed as PST150024) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
