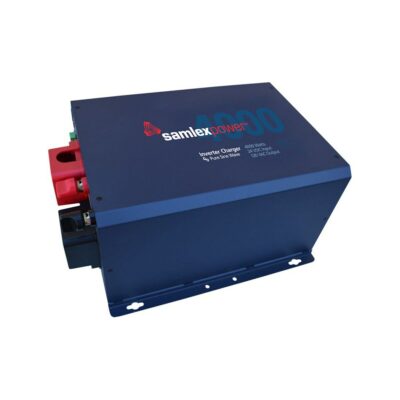

Samlex EVO 4000W 24V Pure Sine Inverter/Charger

The Samlex EVO-4024 is a 4000W single-phase hybrid inverter/charger built for off-grid and backup power systems running on a 24 VDC battery bank. It outputs 120 VAC pure sine wave power at under 5% THD with 94% inverter efficiency, integrated solar charging up to 50 A, and a programmable multi-stage battery charger. Seven charging profiles and adaptive control make it suitable for a wide range of battery types.

Key Features:

• 4000W continuous, hybrid single-phase inverter
• Pure sine wave output, < 5% THD, 94% efficiency
• 24 VDC input, 120 VAC / 60 Hz or 50 Hz output
• Power boost up to 6000 W for 5 seconds
• Surge 12 kVA for 1 ms, 8 kVA for 100 ms
• Solar charging up to 50 A, 33 VDC max PV input
• Programmable charging 0-110 A, 24-33 VDC
• 1 ms transfer time, DPDT 70 A transfer relay
• UL 1741, UL 458, CSA C22.2, FCC Part 15(B), RoHS
• 12.8 x 16.8 x 8.2 in, 3-year warranty

Ideal for off-grid cabins, RVs, marine, and backup power installations that need reliable 120 VAC from a 24 V battery bank. Its seven charging profiles, solar input, and dry contact communication let it integrate cleanly with battery banks, generators, and grid AC sources. Order the EVO-4024 (also listed as EVO4024) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
