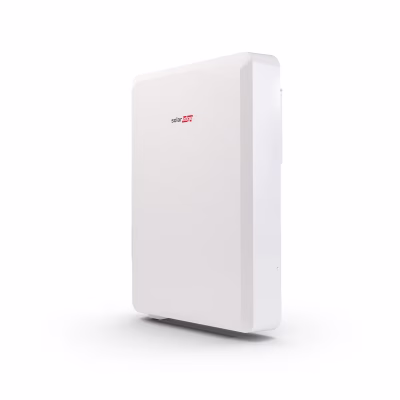

SolarEdge Home Battery 400V (10 kWh)
The SolarEdge UBAT-10K1PS0B-03 Home Battery 400V is a LiFePO4 storage unit with 9.7 kWh capacity, 100% depth of discharge, and 94.5% round trip efficiency. It delivers 5000 W continuous and 7500 W peak output on a 350-450 Vdc system while pairing directly with SolarEdge Home Hub Inverters.
$15,784.00
Available to order
Ships when it arrives. Contact us for timing.
Not available for pickup yet
Pickup at Red Deer, AB once it arrives.
Ready when it arrives
— we’ll tell you about drops and promotions.
The SolarEdge Home Battery 400V (UBAT-10K1PS0B-03) is a high-voltage LiFePO4 energy storage unit built for residential solar installations paired with SolarEdge Home Hub Inverters. It offers 9.7 kWh usable capacity at 100% depth of discharge, 94.5% round trip efficiency, and a 450 V nominal battery voltage. With 5000 W continuous output, IP55 / NEMA 3R protection, and floor or wall mounting, it suits homeowners seeking reliable backup and self-consumption storage.
Key Features:
- LiFePO4 chemistry, 9.7 kWh usable at 100% DoD
- 94.5% round trip efficiency
- Battery voltage 450 V, range 350-450 Vdc
- 5000 W continuous, 7500 W peak (10 sec)
- Max discharge current 14.3 A
- IP55 / NEMA 3R, natural convection, <25 dBA
- Operating temperature -4°F to 122°F
- Floor or wall mount, RS485 and wireless comms
- UL 1973, UL 9540, UL 9540A, UN 38.3 certified
- 10-year warranty, up to 3 batteries per inverter
Ideal for residential self-consumption, time-of-use shifting, and backup power, this battery integrates directly with SolarEdge Home Hub Inverters. Its wide -4°F to 122°F operating range and IP55 / NEMA 3R enclosure support indoor or outdoor installation across Canadian climates, with up to three units per inverter for expanded storage. Order the UBAT-10K1PS0B-03 (also listed as UBAT10K1PS0B03) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
| Usable energy | 9700 kWh |
|---|---|
| Max continuous power | 5000 W |
| Max continuous discharge current | 14.3 A |
| Round-trip efficiency | 94.5 (peak) % |
| Depth of discharge | 100 % |
| Operating temperature range | -20 to +50 °C |
| Enclosure rating | IP55 / NEMA 3R |
| Dimensions (L×W×H) | 790 x 1179 x 250 mm (31.1 × 46.4 × 9.8 in) |
| Weight | 119 kg (262.4 lb) |
| Product warranty | 10 yr |
