SolarEdge

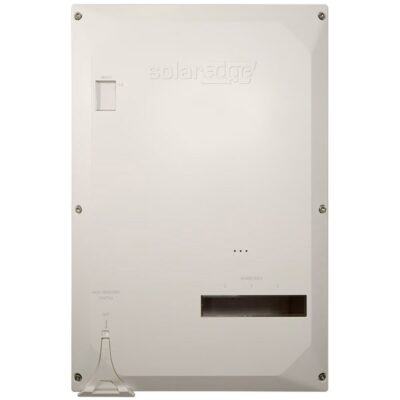

SolarEdge Home Backup Interface 5 kW ATX, Import/Export Meter, 200 A MCB, Service Side Connection

SKU: BI-EUSGN-03

The SolarEdge BI-EUSGN-03 Home Backup Interface is a 200 A, 240 VAC backup accessory with a built-in import/export meter and service-side connection. It delivers whole-home backup with grid disconnection switchover under 100 ms, supports up to 3 inverter inputs, and integrates a PCS-certified energy meter with 1% accuracy.

$2,685.00

or $123.85/mo for 24 mo at 9.96% APR with Affirm.

Available to order

Ships when it arrives. Contact us for timing.

Not available for pickup yet

Pickup at Red Deer, AB once it arrives.

Ready when it arrives

— we’ll tell you about drops and promotions.

The SolarEdge Home Backup Interface (BI-EUSGN-03) is a service-equipment-rated backup accessory rated at 200 A and 240 VAC, designed for homeowners pairing SolarEdge storage with whole-home backup. It provides fast grid disconnection with switchover under 100 ms, an integrated import/export energy meter, and supports up to three inverter inputs. Housed in a NEMA 3R / IP44 enclosure with a user-replaceable cooling fan, it operates reliably across Canadian climates from -40°F to 122°F.

Key Features:

  • 200 A rated, 240 VAC service equipment
  • Grid disconnection switchover under 100 ms
  • Integrated PCS-certified meter, 1% accuracy
  • AC output range 211-264 VAC, 60 Hz
  • Backup output 120 V nominal, 105-132 V
  • Up to 3 inverter inputs, 3 x 40A/63A CB
  • Generator input up to 22,500 W / 94 AAC
  • NEMA 3R / IP44, -40°F to 122°F
  • RS485 comms, 2 communication inputs
  • 12-year warranty, UL 1741 / UL869A certified

Ideal for residential backup systems using the StorEdge Single Phase Inverter or SolarEdge Home Hub Inverter. With generator support, dry contact 2-wire start, and imbalance compensation up to 5000 W in backup operation, it suits homeowners seeking dependable whole-home energy resilience. Order the BI-EUSGN-03 (also listed as BIEUSGN03) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.

BI-EUSGN-03 · 3 files.
