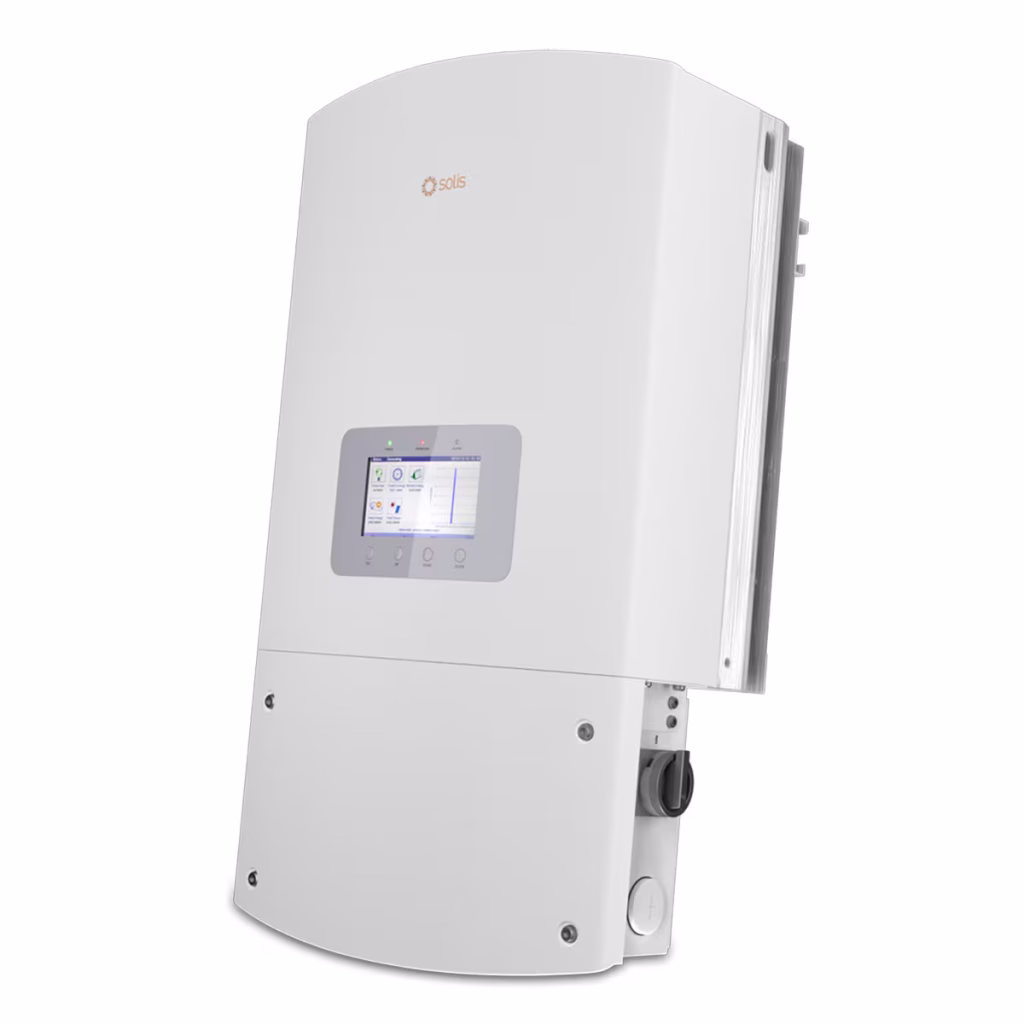

Solis S6-GC36K 36kW 1000VDC Three Phase Grid-Tie Inverter

The Solis S6-GC36K-US-APST S6-GC36K is a transformerless three-phase grid-tie inverter rated at 36 kW and 36 kVA apparent output, built for commercial and utility-scale PV systems. Featuring a max PV input of 1000 VDC across three MPPT trackers, it reaches 98.8% peak efficiency (98.3% CEC) and connects to a 480 VAC, 60 Hz grid. Its Type 4X, C5 anti-corrosion enclosure and natural cooling suit demanding outdoor sites.

Key Features:

• 36 kW output, 36 kVA apparent power
• 98.8% peak efficiency, 98.3% CEC
• 3 MPPT trackers, up to 6 input strings
• Max PV input 1000 VDC, 40 A per input
• MPPT range 180-1000 V, start-up 180 V
• 480 VAC three-phase, 43.3 A max output
• Integrated AFCI, DC/AC switch, Type II surge
• Type 4X, C5 enclosure, natural cooling, ≤55 dB(A)
• WiFi, Ethernet, RS485, Cellular, Sunspec Modbus
• UL1741SB, IEEE 1547-2018, 10-year warranty

Ideal for large commercial rooftop and ground-mount arrays needing high-voltage string flexibility and robust outdoor protection. Operating from -13°F to 140°F and up to 13,120 ft altitude, it integrates with monitoring platforms via WiFi, Ethernet, RS485 or cellular and connects via MC4 and OT terminals. Order the S6-GC36K-US-APST (also listed as S6GC36KUSAPST) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
