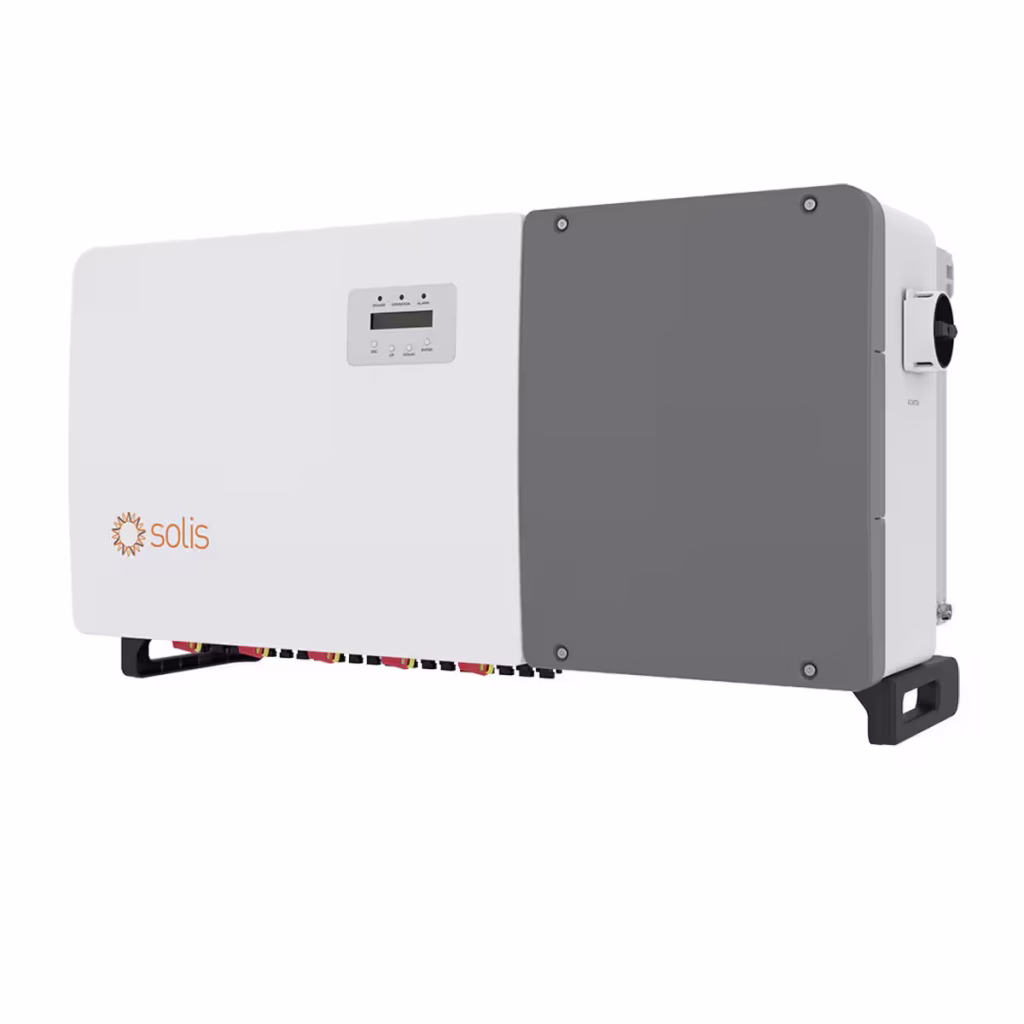

Solis S5-GC60K-LV 60kW 1000VDC to 208VAC Commercial Inverter

The Solis S5-GC60K-LV-US-APST S5-GC60K-LV is a 60 kW three-phase grid-tie commercial inverter built for large rooftop and ground-mount solar arrays operating on a 208 VAC network. This transformerless unit accepts up to 1000 VDC across 8 MPPT trackers and 16 input strings, delivering 98.5% peak efficiency (98.1% CEC) with intelligent fan-cooling. Integrated AFCI, rapid shutdown and PID recovery make it a complete, code-ready solution for demanding installations.

Key Features:

• 60 kW grid-tie, 60 kVA apparent output
• Efficiency 98.5% (98.1% CEC)
• Three phase, transformerless topology
• 8 MPPT trackers, 16 input strings
• Max PV input 1000 VDC, MPPT range 180-1000 V
• Max input current 8 x 32 A, start-up 195 V
• Output 208 VAC, 60 Hz, max 166.5 A
• Integrated AFCI, rapid shutdown, PID recovery
• TYPE 4X enclosure, -22°F to 140°F, 200 lbs
• Cellular, RS485 and WiFi, 10-year warranty

Ideal for commercial and utility-scale PV systems on 208 VAC service, the S5-GC60K-LV suits demanding rooftop and ground-mount projects. With DC Type II and AC Type II surge protection, string monitoring, I/V curve scanning and MC4 connections, it integrates cleanly into code-compliant designs meeting UL1741SB and NEC 690.12-2020. Order the S5-GC60K-LV-US-APST (also listed as S5GC60KLVUSAPST) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
