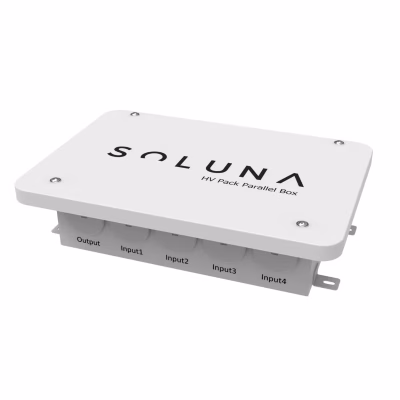

Soluna Parallel Box HV
The Soluna Parallel Box HV is a high-voltage battery combiner that connects up to four battery inputs at 530 VDC into a single system supporting 60 kWh and up to 150 kWh maximum capacity. It delivers up to 175 A discharge and 50 A charge per input in an IP65 enclosure backed by a 10-year warranty.
$163.00
Available to ship 7 ready to ship
Ships in 1–3 business days.
Delivers in 2–5 business days
Available for pickup
Brought in to Red Deer, AB when you order.
Pickup as early as Mon, Oct 19
— we’ll tell you about drops and promotions.
The Soluna Parallel Box HV is a high-voltage parallel combiner designed to connect multiple battery strings into a single high-voltage energy storage system. Operating at 530 VDC, it accepts up to four battery inputs and consolidates them for larger installations, supporting 60 kWh per unit and up to 150 kWh maximum capacity. Its rugged IP65 enclosure and wide operating range make it suited to demanding residential and commercial storage projects requiring reliable high-voltage aggregation.
Key Features:
- Working voltage 530 VDC
- Capacity 60 kWh, up to 150 kWh maximum
- Max charge current 50 A (x4 inputs)
- Max discharge current 175 A output
- Input wiring 10 mm² (x4), output 35 mm²
- 4 input and 2 output RJ45 (8P) ports
- IP65 enclosure rating
- Operating temperature -4°F to 122°F
- 13.1 x 9.2 x 3.4 in, 77 lbs
- 10-year warranty
Ideal for high-voltage battery installations that need to combine multiple strings into one scalable system, the Parallel Box HV suits residential and commercial storage builds. RJ45 communication ports integrate the paralleled batteries, while the IP65 enclosure supports demanding indoor and outdoor environments.
| Max continuous discharge current | 175 A |
|---|---|
| Operating temperature range | -20 to 50 °C |
| Enclosure rating | IP65 |
| Dimensions (L×W×H) | 232.4 × 332.4 × 86.2 mm (9.1 × 13.1 × 3.4 in) |
| Weight | 3.5 kg (7.7 lb) |
