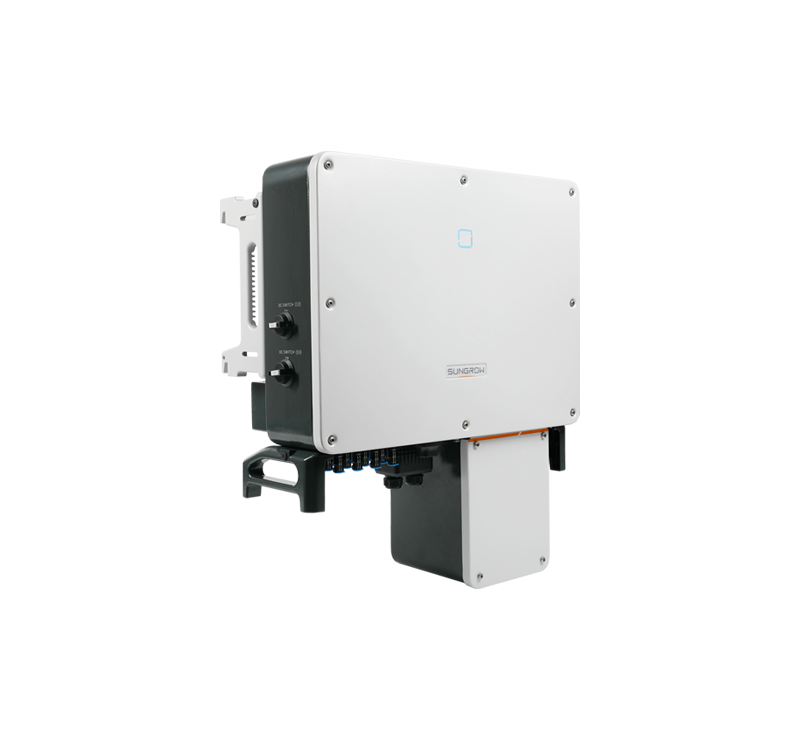

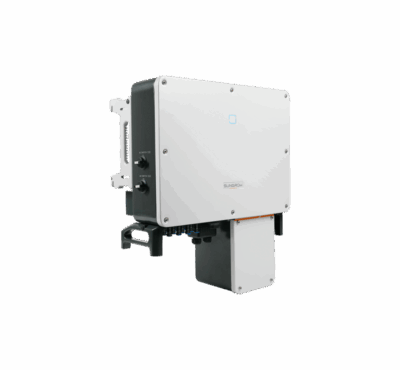

Sungrow 60kW 1000VDC Three-Phase String Inverter

The Sungrow SG60CX-US is a transformerless three-phase grid-tie string inverter rated at 60 kW, built for commercial and utility-scale solar arrays. It supports up to 1000 VDC PV input across six MPPT trackers with an MPP voltage range of 200 to 1000 VDC, delivering 277/480 VAC output at up to 98.80% max efficiency (98.00% CEC). Its IP66 NEMA 4X enclosure and wide temperature tolerance suit demanding Canadian installations.

Key Features:

• 60 kW three-phase grid-tie output
• Max efficiency 98.80% (98.00% CEC)
• Max PV input 1000 VDC, 6 MPPT trackers
• MPP range 200-1000 VDC, 2 strings per MPPT
• Max PV input current 26 A, short-circuit 45 A
• 277/480 VAC output, max AC current 72.2 A
• Transformerless, THD < 3%, AFCI + rapid shutdown
• IP66 / NEMA 4X, smart forced air cooling
• 30.7 x 25.4 x 12.2 in, 143.3 lbs
• 10-year warranty, UL 1741 SA and IEEE 1547 certified

Ideal for commercial rooftop and ground-mount solar systems, the SG60CX-US suits installers needing high-current MPPT flexibility and code-compliant safety. It integrates via RS485, optional Ethernet and Wi-Fi, and SunSpec Modbus, with PV string monitoring and PID recovery for reliable long-term performance.
