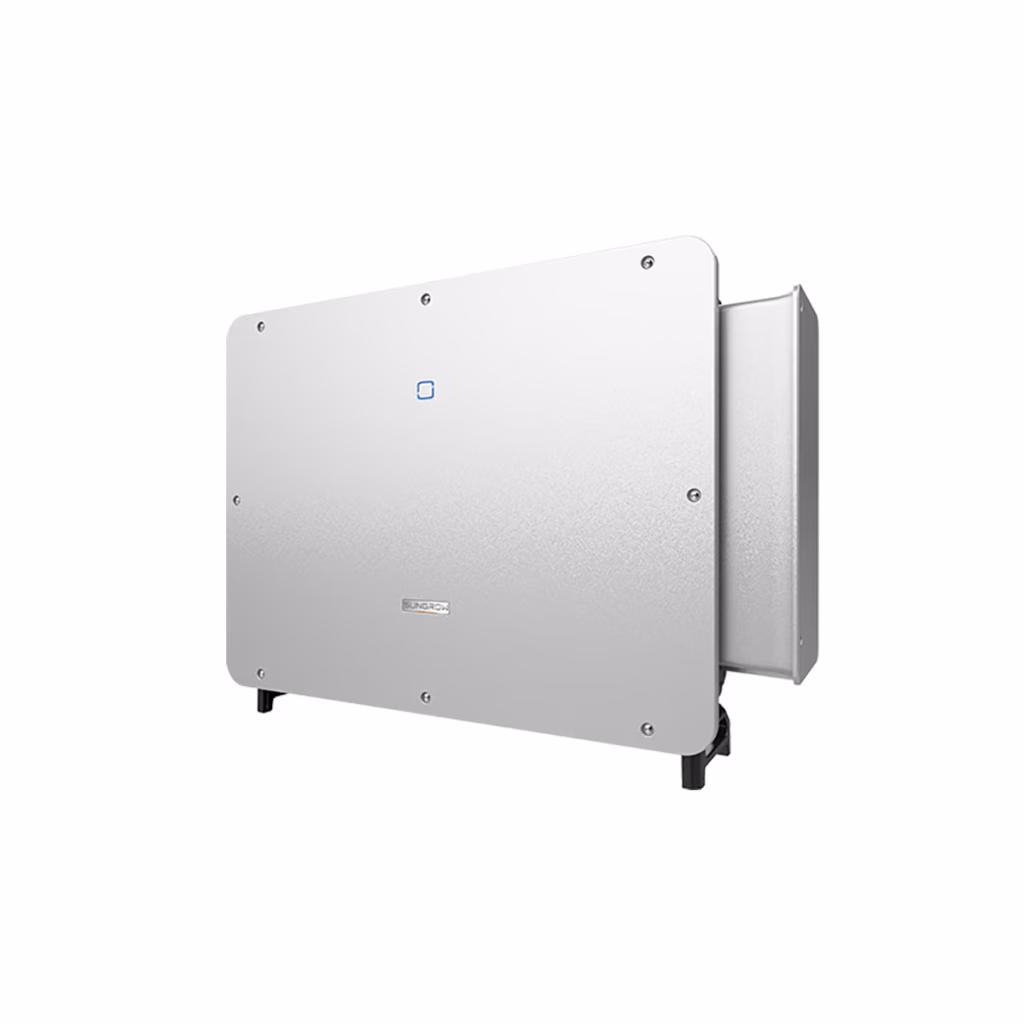

Sungrow 200kW 1500VDC Three-Phase String Inverter

The Sungrow SG200HX-US is a 200 kW three-phase, transformerless grid-tie string inverter built for large commercial and utility-scale solar arrays. With 12 MPPT trackers, a 500-1500 VDC MPP voltage range and up to 1500 VDC PV input, it maximizes array flexibility and yield. It delivers 200 KVA at 40°C on a 600 VAC output at 98.8% peak efficiency (98.5% CEC), housed in a rugged IP66/NEMA 4X enclosure.

Key Features:

• 200 kW output, 98.8% efficiency (98.5% CEC)
• 12 MPPT trackers, transformerless design
• Max PV input 1500 VDC, 40 A per MPPT
• MPP range 500-1500 VDC, start-up 550 VDC
• 200 KVA @ 40°C, max AC current 193 A
• Output 600 VAC, 60 Hz three-phase
• IP66/NEMA 4X, smart forced air cooling
• Operating range -22°F to 140°F
• Modbus, RS485, SunSpec, Bluetooth+APP
• 45.9 x 34.3 x 14.2 in, 265 lbs, 5-year warranty

Ideal for large commercial, industrial and utility-scale PV plants requiring high input voltage and multiple tracker flexibility. Its MC4 DC connections, OT/DT AC terminals, DC Type II / AC Type II surge protection and SunSpec communication integrate with standard monitoring and combiner infrastructure for reliable grid-tied generation. Order the SG200HX-US (also listed as SG200HXUS) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
