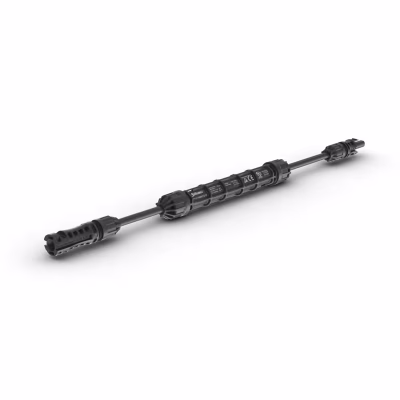

Staubli 20A In-Line Fuse Cable PV-K/1500ILF2-20
The Staubli 32.0427-0067UL PV-K/1500ILF2-20 is a 20A in-line fuse cable with MC4-EVO2 connectors and 10 AWG (6 mm²) tin-plated copper conductors, rated for 1500 VDC. It delivers robust series-string overcurrent protection with an IP65/IP68 enclosure rating and reliable performance from -40°F to 122°F.
$73.00
Available to ship 490 ready to ship
Ships in 1–3 business days.
Delivers in 2–5 business days
Available for pickup
Brought in to Red Deer, AB when you order.
Pickup as early as Mon, Oct 19
— we’ll tell you about drops and promotions.
The Staubli 32.0427-0067UL PV-K/1500ILF2-20 is a factory-assembled in-line fuse cable engineered for photovoltaic string overcurrent protection at up to 1500 VDC. It combines a 20A fuse holder with MC4-EVO2 connectors and 10 AWG (6 mm²) tin-plated copper conductors, delivering low contact resistance and a sealed IP65/IP68 enclosure. Designed for installers building code-compliant arrays, it mates with PV-KST4-EVO 2 or PV-KBT4-EVO 2 connectors for fast, secure field connections.
Key Features:
- 20A in-line fuse rated to 1500 VDC
- MC4-EVO2 connectors, mates PV-KST4/KBT4-EVO 2
- 10 AWG (6 mm²) tin-plated copper conductors
- PA insulation, 2 conductors, 26.4 in length
- IP65/IP68 rating, IP68 (1 m, 1 h) mated
- Operating range -40°F to 122°F
- Max contact resistance under 0.2 mohm
- Safety Class II, CATIII/3, Pollution Degree 2
- UL 4248-1, UL 4248-19, UL94 V-0 certified
- 12-year warranty
Ideal for residential and commercial PV arrays requiring integrated string fuse protection, this cable suits installers working with 1500 VDC systems. Its MC4-EVO2 terminations integrate directly with PV-KST4-EVO 2 and PV-KBT4-EVO 2 connectors, streamlining wiring in harsh outdoor Canadian climates. Order the 32.0427-0067UL (also listed as 32.04270067UL) from Circuit Solar, in stock in Canada and shipped from Red Deer, AB.
